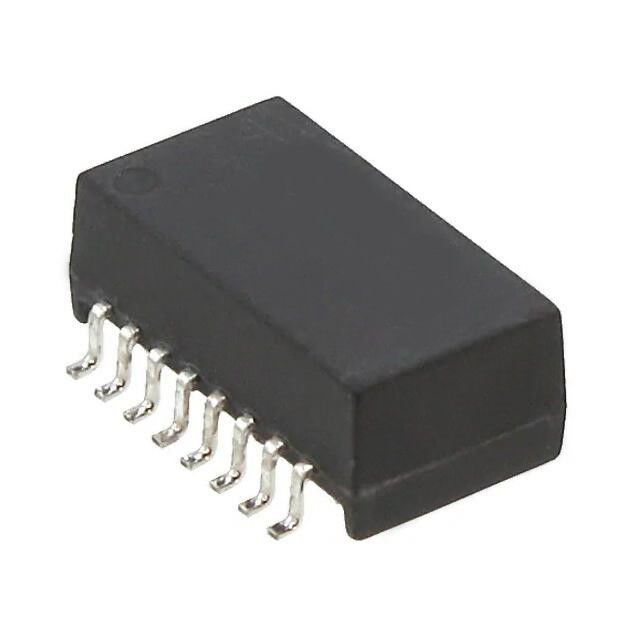

EX2024NL / EX2024NLT 350µH Isolation and Data Interface (Encapsulated) Transformer

Name: EX2024NL / EX2024NLT 350µH Isolation and Data Interface (Encapsulated) Transformer
Brand: LINK-PP
SKU: EX2024NL / EX2024NLT
Price: 0.06 USD
Availability: InStock
Rating: 4.6 (130 reviews)

Rincian Produk

Tempat asal: Guangdong, Cina

Nama merek: LINK-PP

Sertifikasi: UL,RoHS,Reach,ISO

Nomor model: EX2024NL / EX2024NLT

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 400/2000/10K/25K

Harga: $0.06-$3.2

Kemasan rincian: T&R

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 3KK/Bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                                                                                Transformator Ethernet Tunggal 100BASE-TX, Transformator Isolasi Ethernet 1CT / 1CT, Transformator Magnetik Lan 10 / 100Base-T


Spesifikasi:	EX2024NL / EX2024NLT	P / N:	LPxxxxNL
peringkat:	Daya 10Base-T	Pemasangan:	SMD
Sampel:	Tersedia	Archivi Disponibili:	PDF / 3D / ISG / Stp / Langkah / Lembar Data

Spesifikasi:	EX2024NL / EX2024NLT
P / N:	LPxxxxNL
peringkat:	Daya 10Base-T
Pemasangan:	SMD
Sampel:	Tersedia
Archivi Disponibili:	PDF / 3D / ISG / Stp / Langkah / Lembar Data

EX2024NL / EX2024NLT 350µH Isolation and Data Interface (Encapsulated) Transformer

EX2024NL / EX2024NLT 350µH Isolation and Data Interface (Encapsulated) Transformer

1.Single Port Lan Filter Power Supportive

2.ColiStructure: Toroidal

3.10 base-t transformer

4.SMT, 16pins

Part Status	Active
Transformer Type	Isolation and Data Interface (Encapsulated)
Inductance	350µH
ET (Volt-Time)	-
Turns Ratio - Primary:Secondary	1CT:2.5CT Transmitter, 1CT:1CT Receiver
Mounting Type	Surface Mount
Size / Dimension	0.500" L x 0.285" W (12.70mm x 7.24mm)
Height - Seated (Max)	0.210" (5.33mm)
Operating Temperature	0°C ~ 70°C
Weight	0.03 oz (0.85 g)

Electrical Specifications @25℃:

1.OCL: 350uH Min

@100KHz 0.1V 8mA
2.Insertion Loss:
1-100MHz:-1.2dB Max
3.Return Loss(dB Min @100Ω):
1-30MHz:-16 40MHz:-14
50MHz:-13 60-80MHz:-12
4.Crosstalk(dB Min):
30MHz:-43 60MHz:-37
100MHz:-31
5.Differential to Common Mode Rejection:
30MHz:-43dB Min 60MHz:-37dB Min
100MHz:-33dB Min
6.Isolation Voltage: 1500Vrms Min
7.Operating Temperature: -40℃～+85℃.

NOTES:

1.Designed to support application, such as SOHO(ADSL modems),LAN-on- Motherboard(LOM),hub and Switches.
2.Power over Ethernet (PoE) Magnetics
3.With various Turns Ratios.
4.RoHS"NL" peak solder rating 245℃.
