Rincian Produk
Tempat asal: Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: ARJM11A1-811-JJ-ER4-T / ARJM11A3-811-JJ-ER4-T
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.5-$3.5
Kemasan rincian: BAKI
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 180K/Bulan
Spesifikasi: |
ARJM11A3-811-JJ-ER4-T |
Core: |
8 |
Apllication: |
5G Basis-Tx |
Munafactuer asli: |
LINK-PP |
Sampel: |
Bebas |
Spesifikasi: |
ARJM11A3-811-JJ-ER4-T |
Core: |
8 |
Apllication: |
5G Basis-Tx |
Munafactuer asli: |
LINK-PP |
Sampel: |
Bebas |

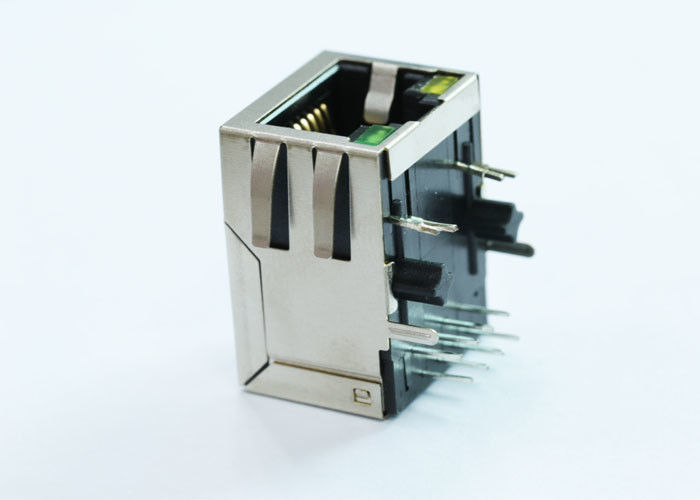

| 1x1 Port 8P8C RJ45 Jack Connector dengan 5G Base-T Magnetics Terpadu, LED Hijau & Kuning / Hijau & Kuning, Tab Bawah, RoHS | |
| Nomor Bagian LINK-PP | LPJGxxxxNL |
| Nomor Bagian Abracon LLC | ARJM11A1-811-JJ-ER4-T / ARJM11A3-811-JJ-ER4-T |
| Aplikasi-Lan | ETHERNET (NoN PoE) |
| AutomDX | IYA NIH |
| Sirkuit Bst | IYA NIH |
| Konfigurasi RX | T, C |
| Konfigurasi TX | T, C |
| Hubungi Area kawin Plating | EMAS 6u "/ 15u" / 30u " |
| Core per Port | 8 |
| Dioda | TIDAK ADA DIODA |
| Opsi LED | LED Hijau & Kuning / Hijau & Kuning |
| Memalangi | TAB Down |
| Jumlah port | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | MASUK SISI |
| PCB Mempertahankan Posting | T POST |
| Paket Tinggi (Inci) | 0,535 |
| Paket Tinggi (mm) | 13.60 |
| Paket Panjang (Inci) | 0.839 |
| Paket Panjang (mm) | 21.30 |
| Paket Lebar (Inci) | 0,626 |
| Lebar paket (mm) | 15.90 |
| Jenis pin | THT SOLDER |
| Sesuai RoHS | YA-RoHS-5 DENGAN LEAD IN EXEMPTION SOLDER |
| Pencarian | IYA NIH |
| Lindungi Tab EMI | Dengan |
| Kecepatan | 5G Basis-T |
| Suhu | -40 ° C ~ 85 ° C |
| Ternyata Rasio RX | 1CT: 1CT |
| Ternyata Rasio TX | 1CT: 1CT |
APLIKASI:
Nomor Bagian Lainnya
| ARJM11B1-811-KK-ER2-T |
| ARJM11A3-811-JJ-ER2-T |
| ARJM11B3-811-JJ-ER2-T |
| ARJM11A3-811-KK-ER2-T |
| ARJM11B3-811-KK-ER2-T |
| ARJM11A1-811-AB-ER4-T |
| ARJM11A1-811-AD-ER4-T |
| ARJM11B1-811-AB-ER4-T |
| ARJM11B1-811-AD-ER4-T |
| ARJM11A3-811-AB-ER4-T |
| ARJM11A3-811-AD-ER4-T |
| ARJM11B3-811-AB-ER4-T |
| ARJM11B3-811-AD-ER4-T |
| ARJM11C7-811-AB-CW2 |
| ARJM11D7-811-AB-CW2 |
