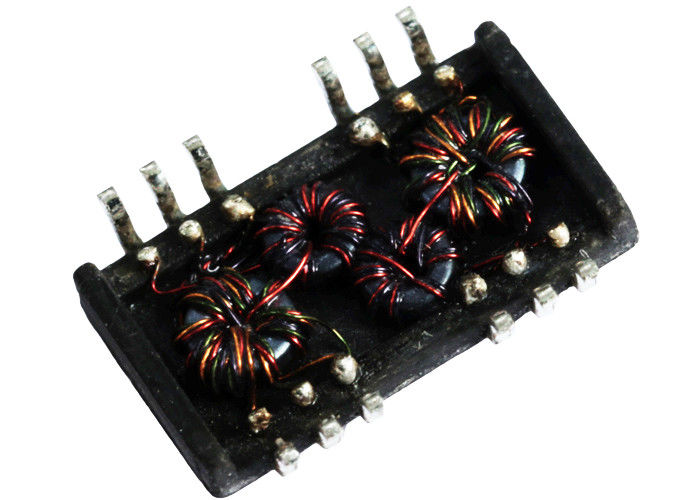

PM-6283 10/100 Base-t PC Card LAN Modul Magnetik Transformer LP41698ANL

Name: PM-6283 10/100 Base-t PC Card LAN Modul Magnetik Transformer LP41698ANL
Brand: LINK-PP
SKU: PM-6283
Price: 0.06 USD
Availability: InStock
Rating: 4.8 (152 reviews)

Rincian Produk

Tempat asal: Guangdong, Cina

Nama merek: LINK-PP

Sertifikasi: UL,RoHS,Reach,ISO

Nomor model: PM-6283

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 400/2000/10K/25K

Harga: $0.06-$3.2

Kemasan rincian: T&R

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 3KK/Bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                                                                                10 / 100Base-T Magnetics, Gigabit Magnetics Transformer


Spesifikasi:	PM-6283	Nomor bagian:	LP41698ANL
Hi-pot:	1500Vrms	Kecepatan:	10/100 base-TX
Aplikasi:	NIC/HUB/Switch/Router/sistem PC/Printer/Server	Sertifikat profesional:	SGS / ISO9001: 2008 / UL / ISO 14001: 2004 / REACH168

Spesifikasi:	PM-6283
Nomor bagian:	LP41698ANL
Hi-pot:	1500Vrms
Kecepatan:	10/100 base-TX
Aplikasi:	NIC/HUB/Switch/Router/sistem PC/Printer/Server
Sertifikat profesional:	SGS / ISO9001: 2008 / UL / ISO 14001: 2004 / REACH168

PM-6283 10/100 Base-t PC Card LAN Modul Magnetik Transformer LP41698ANL

PM-6283 10/100 Base-t PC Card LAN Modul Magnetik Transformer LP41698ANL

Nomor Bagian: PM-6283
1.Turns Ratio (± 3%):
TX = 1CT: 1CT RX = 1CT: 1CT
2. Intuktansi OCL:
170uH MIN @ 100KHz 0.1V
3. Polaritas: 1-11, 6-16 In-Phase
4. Insersi Loss (dB MIN):
100KHz-100MHz: -0.9
5. Return Loss (dB MIN):
30MHz: -16
60MHz: -12
80MHz: -11
6. Crosstalk (dB MIN):
30MHz: -38
62MHz: -38

100MHz: -38
7. Penolakan Mode Umum Ke Bersama:
30MHz: -40
50MHz: -40
80MHz: -40
8. Hi-Pot: 1500VRMS IS 1mA

9. Kisaran Suhu Operasional: -40 ℃ Ke 85 ℃
