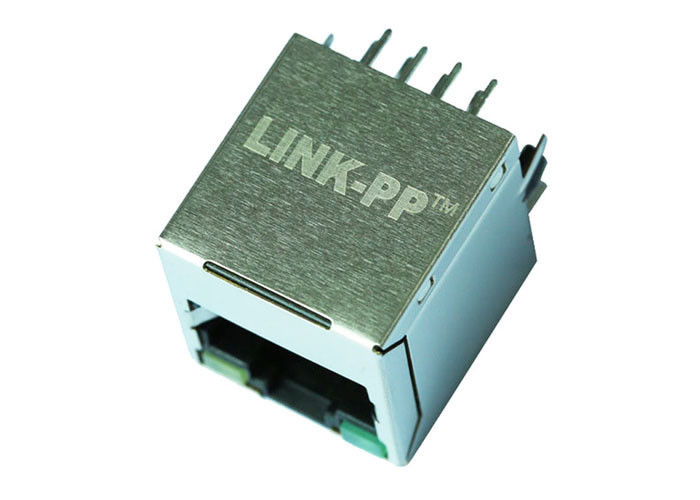

ARJ11G-MASA-AB-FLT2 Vertikal RJ45 Jack 8P8C Shield Top Entry Tanpa Magnet

Name: ARJ11G-MASA-AB-FLT2 Vertikal RJ45 Jack 8P8C Shield Top Entry Tanpa Magnet
Brand: LINK-PP
SKU: ARJ11G-MASA-AB-FLT2
Price: 0.09 USD
Availability: InStock
Rating: 5 (150 reviews)

Rincian Produk

Tempat asal: Guangdong, Cina

Nama merek: LINK-PP

Sertifikasi: UL,ROHS,Reach,ISO

Nomor model: ARJ11G-MASA-AB-FLT2

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 50/500/1000/25K

Harga: $0.09-$1.85

Kemasan rincian: 100pcs / Baki, 11Trays = 37 * 30 * 30cm = 1100PCS / Carton = 9KG

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 4000000 / Bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                                                                                Konektor RJ45 ditumpuk, modular Jack rj45


Spesifikasi:	ARJ11G-MASA-AB-FLT2	No Bagian:	LPJxxxxxNL
Ethernet:	Cat5 / 5e	pemasangan:	Perisai vertikal
Munafactuer:	LINK-PP	Sampel:	Tersedia gratis

Spesifikasi:	ARJ11G-MASA-AB-FLT2
No Bagian:	LPJxxxxxNL
Ethernet:	Cat5 / 5e
pemasangan:	Perisai vertikal
Munafactuer:	LINK-PP
Sampel:	Tersedia gratis

ARJ11G-MASA-AB-FLT2 Vertikal RJ45 Jack 8P8C Shield Top Entry Tanpa Magnet

ARJ11G-MASA-AB-FLT2 Vertikal RJ45 Jack 8P8C Shield Top Entry Tanpa Magnet

LINK-PP Rj45 Vertical Model Jack
8P8C Entri Teratas Rj45
pin untuk menyematkan ARJ11G-MASA-AB-FLT2
10/100 Base-T Vertikal RJ45
Dimensi: 16.1x16.7x17.0mm

SPESIFIKASI LISTRIK @ 25 ℃

1.Turn Ratio (± 5%):

TX = 1CT: 1 RX = 1CT: 1

2.EMI Fingers: No

3. LED (L / R): G / Y

4.Insertion Loss (dBmax):

-1.0dB MAX @ 0,3-100MHz

5.Return Loss (dB MIN @ 100Ω ± 15Ω):

-20dB MIN @ 1-30MHz

-15dB MIN @ 40MHz

-15dB MIN @ 50MHz

-10dB MIN @ 60-100MHz

6.Cross talk (dB TYP):

-30dB MIN @ 30MHz

-30dB MIN @ 60MHz

-30dB MIN @ 100MHz

7. Penolakan Mode Umum (dB MIN):

-30dB MIN @ 30MHz

-30dB MIN @ 60MHz

-30dB MIN @ 100MHz

8.Hipot Test: 1500Vrms MIN

9.DCR (MAX Ω): PRI = 1.0 SEC = 1.2
