Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: ISO9001,SGS,UL,CE,REACH163

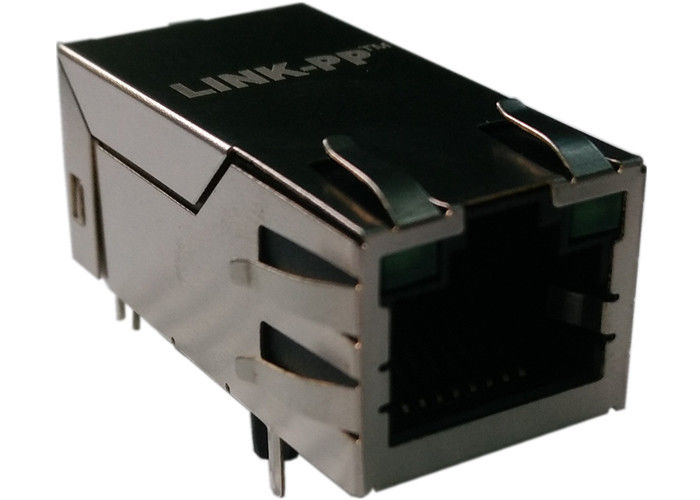

Nomor model: ARJP11C-MASD-AB-A-FMU2
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.09-$1.85
Kemasan rincian: Tray & Karton
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3000000/bulan
Spec: |
ARJP11C-MASD-AB-A-FMU2 |
Setara: |
LPJK0030A93NL |
Jenis mounting: |
90 ° Angle (Kanan) |
Antarmuka: |
10/100 base-T, AutoMDIX |
LED: |
Hijau - kuning, hijau |
Fungsi: |
Power over Ethernet (PoE) |
Cross Rf: |
ARJP11C-MASD-AB-A-FMU2 = LPJK0030A93NL |
Spec: |
ARJP11C-MASD-AB-A-FMU2 |
Setara: |
LPJK0030A93NL |
Jenis mounting: |
90 ° Angle (Kanan) |
Antarmuka: |
10/100 base-T, AutoMDIX |
LED: |
Hijau - kuning, hijau |
Fungsi: |
Power over Ethernet (PoE) |
Cross Rf: |
ARJP11C-MASD-AB-A-FMU2 = LPJK0030A93NL |
ARJP11C-MASD-AB-A-FMU2 | ||||||||||||||||||||||||||||||||
Pedagang Spec | ARJP11C-MASD-AB-A-FMU2 |
| ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Made in China Cross | LPJK0030A93NL | |||||||||||||||||||||||||||||||
Pabrikan | LINK-PP China | |||||||||||||||||||||||||||||||
Deskripsi | konfigurasi pin Poe Rj45 | |||||||||||||||||||||||||||||||
Dokumen Tersedia | PDF / 3D / Langkah / IGS / Harga / Salib | |||||||||||||||||||||||||||||||
Kuantitas Tersedia | 200.000 PCS atau 5 minggu | |||||||||||||||||||||||||||||||
ARJP11C-MASD-AB-A-FMU2 SPESIFIKASI LISTRIK @
1.Turns Ratio (± 2%):
TX = 1CT: 1CT RX = 1CT: 1CT
2.OCL: 350uH Min
@ 100KHz, 100mV, arus bias 8mA
Kerugian 3.Insion:
1-65MHz: -1.0dB Maks
4.Return Loss (dB Min @ 100Ω ± 15Ω):
1-10MHz: -20 30MHz: -16
60-80MHz: -12
5.Crosstalk (dB Min):
1-10MHz: -40 30-60MHz: -35
60-100MHz: -30
6. Penolakan Mode Umum (dB Min):
1-50MHz: -30 50-130MHz: -20
7.Isolation Voltage: 1500Vrms Min
