Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: ISO9001,SGS,UL,CE,REACH
Nomor model: MOX-RJ45-1815GYV
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.09-$1.85
Kemasan rincian: Paket: 60 PC di nampan 1, 22 nampan dalam 1 karton yang 37 * 30 * 30 cm, 10 kg (1320 pcs) dari setia
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3000000/bulan
Nomor bagian: |
MOX-RJ45-1815GYV |
Spesifikasi: |
MOX-RJ45-1815GYV |
Cross & datasheet: |
LPJ16249A28NL |
Apllication: |
10/100 base-TX POE |
Munafactuer asli: |
LINK-PP |
Proyek aplikasi: |
Tertanam Serial untuk Ethernet modul |
Nomor bagian: |
MOX-RJ45-1815GYV |
Spesifikasi: |
MOX-RJ45-1815GYV |
Cross & datasheet: |
LPJ16249A28NL |
Apllication: |
10/100 base-TX POE |
Munafactuer asli: |
LINK-PP |
Proyek aplikasi: |
Tertanam Serial untuk Ethernet modul |

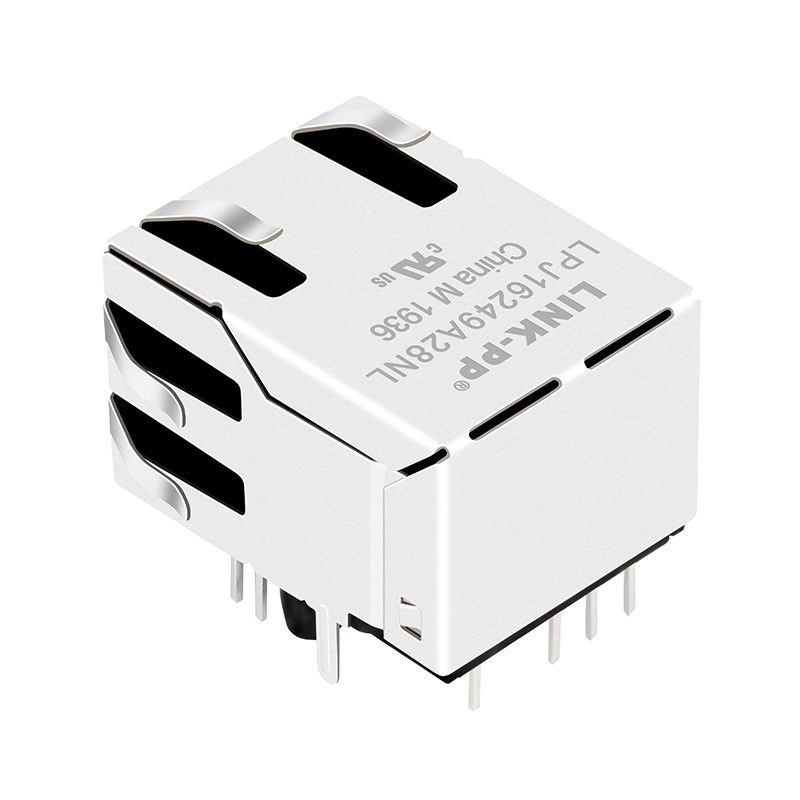

| RJ45 Magnetic Jack dengan 10/100 Base-T Integrated Magnetics, LED Hijau / Oranye, Tab Up, RoHS | |
| Nomor Bagian LINK-PP | LPJ16249A28NL |
| Aplikasi-Lan | ETHERNET (PoE) |
| AutomDX | IYA NIH |
| Bst Circuit | IYA NIH |
| Konfigurasi RX | T, C |
| Konfigurasi TX | T, C |
| Hubungi Plating Area Perkawinan | EMAS 6u "/ 15u" / 30u " |
| Cores per Port | 6 |
| Dioda | TIDAK ADA DIODA |
| Opsi LED | HIJAU / ORANGE |
| Memalangi | TAB UP |
| Jumlah Port | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Mempertahankan Posting | T POST |
| Paket Tinggi (Inci) | 0,530 |
| Tinggi Paket (mm) | 13.45 |
| Paket Panjang (Inci) | 0,837 |
| Paket Panjang (mm) | 21,25 |
| Paket Lebar (Inci) | 0,628 |
| Lebar Paket (mm) | 15,95 |
| Pin Type | PRESS FIT |
| RoHS Compliant | YA-ROHS-5 DENGAN MEMIMPIN DI PEMERIKSAAN SOLDER |
| Pencarian | IYA NIH |
| Perisai Tab EMI | DENGAN |
| Kecepatan | 10/100 BASE-T |
| Suhu | 0 HINGGA 70 ℃ |
| Ternyata Rasio RX | 1CT: 1CT |
| Ternyata Rasio TX | 1CT: 1CT |
6-6605423-1 | 1-6605814-3 | LPJ16212CNL | 1-6610005-1 |
6605752-1 | LPJ16193DNL | LPJ16213AENL | 1-6610005-5 |
6605752-7 | LPJ16193GNL | LPJ16217B10NL | 2-6610005-2 |
1-6605752-1 | LPJ16204AENL | LPJ16218A28NL | 2-6610005-4 |
6605755-1 | LPJ16205A42NL | LPJ16219BENL | 2-6610005-5 |
1-6605755-1 | LPJ16206A28NL | LPJ16221AFNL | 3-6610005-5 |
6605833-6 | LPJ16206A42NL | LPJ16222DNL | 5-6610005-6 |
1-6605833-1 | LPJ16206AFNL | LPJ16249A28NL | 6-6610005-6 |
6605834-1 | LPJ16207ADNL | LPJ16249A28NL | 1-6610049-1 |
1-6605834-1 | LPJ16208CYNL | LPJ16249AZNL | 5-6610049-1 |
6610005-2 | LPJ16208DNL | LPJ16249B28NL | 6610068-6 |
6610005-4 | LPJ16211BENL | LPJ16211DNL | LPJ16211CNL |
6610005-6 | 1-6605814-5 | LPJ16212ADNL | LPJ16191AENL |
Instrumen Texas | INTEL | SAMSUNG | KEBETULAN | EKF | HUAWEI | IBM | CISCO |
FLEXTRONICS | JABIL | Foxconn | CANON | Arduino | - | --- | --- |
Kasus 1 | persediaan | 25% |
Case.2 | 3-4 minggu | 70% |
Case.3 | 5-6 Minggu | 5% |
