Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: ISO9001,SGS,UL,CE,REACH163
Nomor model: HY901184A
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.09-$1.85
Kemasan rincian: 50 pcs dalam baki 1, 24tray di 1 karton yang 32 * 30 * 31, 9 kg (1200pcs) Setiap karton
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3000000/bulan
Nomor bagian: |
HY901184A |
Produksi massal: |
HY901184A |
Munafactuer asli: |
LINK-PP |
Aplikasi: |
10/100base-T POE |
Keluarga: |
Jack Dengan Magnetics |
Mouting: |
Side Masuk POE |
Nomor bagian: |
HY901184A |
Produksi massal: |
HY901184A |
Munafactuer asli: |
LINK-PP |
Aplikasi: |
10/100base-T POE |
Keluarga: |
Jack Dengan Magnetics |
Mouting: |
Side Masuk POE |
| Hanrun HY901184A | Magjack HY901184A | 10/100 Mbps | RJ45 Power Over Ethernet |
HY901184A Hanrun Cross / PDF / datasheet / Harga / 3D / Cross

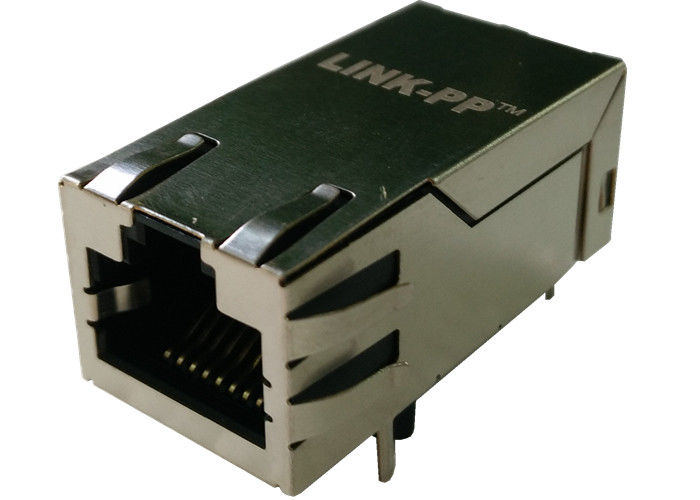

Power over Ethernet RJ45 10/100 DASAR-T JACK W ITH MAGNETIC MODULE
Spesifikasi Listrik @ 25 ℃
1.OCL: 350uH MIN
@ 100KHz 100mV 8mA bias DC saat ini.
2.Turns Ratio (± 3%):
TX = 1CT: 1CT RX = 1CT: 1CT
Kerugian 3.Insion:
1-100MHz: -1.0dB MAX
4.Return Loss (dB MIN):
1-10MHz: -20
30MHz: -16
60-90MHz: -12
5.Crosstalk (dB MIN):
1-10MHz: -40
30-60MHz: -35
60-100MHz: -30
6.CMR (dB MIN):
1-50MHz: -26
50-130MHz: -20
7.DC Rating Arus / Tegangan - Pin PSE:
350mA, @ 57V (terus menerus)
8.Hipot: 1500Vrms MIN
9. Suhu Operasi: -40 ℃ ～ + 85 ℃.
CATATAN:
1.Dirancang untuk mendukung aplikasi, seperti SOHO (ADSL
modem), LAN-on-Motherboard (LOM), hub dan Switch.
2.Memenuhi spesifikasi IEEE 802.3af
3.Single Port Connector Untuk Aplikasi PoE
4. Bahan Bahan:
Perumahan: Termoplastik UL94V-0
Kontak / Perisai: Paduan tembaga
Perisai plating: Nikel
Kontak plating: Emas 6 inci mikro. Di area kontak.
5.Wave suhu ujung solder: 265 ℃ Max
Suhu ujung solder ujung gelombang: 5 Detik Maks
| HY901184A 10 / 100Base-T POE RJ45 Connector LPJK0010CNL 1x1 Magnet Tab-up | ||
|---|---|---|
| HY901184A | Konektor Stewart | HY901184A |
| ARJ11A-MASL-QU2 | ARJC07-111071A | ARJ11C-MCSAT- AB-xMU2 |
| ARJC07-111071A | 47F-1205GYD2 | ARJ11C-MASAA- BA-xLU2 |
| ARJ11A-MDSN-MU2 | ARJC02-111006K | ARJ11C-MASAB- BA-xMU2 |
| ARJC07-111071A | ARV11-3824I | ARJ11C-MASAD- AA-xMU2 |
| ARJ11B-MASAA-MU2 | ARJC02-111006K | ARJC01-111002AR |
| 47F-1205GYD2 | ARJC01-111002AR | ARJ11D-MASB-BA-XMU2 |
| ARJ11B-MASAJ-MU2 | HY901184A | ARJ11D-MCSC-LU2 |
| HY901184A | ARJC02-111006K | ARJ11D-MDSD-AB-XLT2 |
| ARJ11B-MASAN-LU2 | 13F-60NDK2NL | HY901184A |
| ARJ11B-MASBF-LU2 | ARJC01-111002AR | ARJ11D-MDSE-AB-XMU2 |
| 47F-1205GYD2 | 13F-60NDK2NL | ARJ11D-MASE-AB-XMU2 |
| ARJ11B-MASCB-LT2 | ARJP11A-MASA-BA-EMU2 | ARJ11D-MDSG-BA-XMU2 |
| ARJ11B-MBSCB-AB-ELT2 | HY901184A | ARJ11D-MASG-BA-XMU2 |
| HY901184A | ARJP11A-MBSB-AB-EMU2 | ARJ11D-MASG-AA-XMU2 |
| ARJ11B-MESBQ-AB-EMU2 | ARJC02-111006E | ARJC01-111002AR |
| ARJ11B-MASBQ-MU2 | ARJP11B-MASA-BA-EMU2 | ARJ11D-MDSH-AB-XLU2 |
| ARJC07-111071A | ARJP11B-MBSB-AB-EMU2 | ARJ11D-MASH-BA-XLU2 |
| ARJ11B-MFSBQ-AA-EMU2 | ARJC07-111071A | ARJ11D-MBSJ-A-DA-HLT2 |
| 47F-1205GYD2 | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| ARJ11B-MASBR-QU2 | 13F-60NDK2NL | ARJ11D-MBSL-A-DA-HLU2 |
