Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: ISO9001,SGS,UL,CE,REACH163
Nomor model: RJMG1010211A0NR
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.09-$1.85
Kemasan rincian: 50 pcs dalam baki 1, 24tray di 1 karton yang 32 * 30 * 31, 9 kg (1200pcs) Setiap karton
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3000000/bulan
Nomor bagian: |
RJMG1010211A0NR |
Produksi massal: |
LPJXXCNL |
Munafactuer asli: |
LINK-PP |
Aplikasi: |
Ethernet cepat |
Keluarga: |
POE Voltage RJ45 |
Mengetik: |
Power Over Ethernet RJ45 Magnetics Modul |
Nomor bagian: |
RJMG1010211A0NR |
Produksi massal: |
LPJXXCNL |
Munafactuer asli: |
LINK-PP |
Aplikasi: |
Ethernet cepat |
Keluarga: |
POE Voltage RJ45 |
Mengetik: |
Power Over Ethernet RJ45 Magnetics Modul |
| RJMG1010211A0NR | Konektor POE RJ45 | 10/100 POE | POE Rj45 Pinout |
SPESIFIKASI LISTRIK: @ 25 ℃
RJMG1010211A0NR Harga / PDF / Spesifikasi / Salib.
1.OCL (100KHz, 0.1V, 8mA DC Bias):
Min. 350uH
2.Turns Ratio (± 2%):
TX = 1CT: 1 RX = 1CT: 1
Kerugian 3.Insion:
1-100MHz: -1.0dB MAX
4.Return Loss (dB MIN):
1-10MHz: -20 30MHz: -16
60-80MHz: -12 80-100MHz: -10
5.Crosstalk (dB MIN):
1-10MHz: -40 32-65MHz: -35
65-100MHz: -30
6.CMR (dB MIN):
1-125MHz: -30 125-500MHz: -20
7.Hipot: 1500Vrms
8. Rentang Suhu Operasi: 0 ℃ UNTUK 70 ℃ / -40 ℃ Ke 85 ℃
• Dirancang untuk sebagian besar produsen PHY IC terkemuka seperti Broadcom, Marvell, Microsemi.Cypress
• Mendukung 10/100 Base-Tapplications
• Menyediakan pengkondisian sinyal, penekanan EMI dan isolasi sinyal.
| Rj45 Power Over Ethernet RJMG1010211A0NR Rj Mag 10/100 Port Tunggal Dengan Leds | ||
|---|---|---|
| RJMG1010211A0NR | ARJC02-111008B | Konektor POE RJ45 |
| ARJ11A-MASL-QU2 | ARJ11B-MASAI-MU2 | ARJ11C-MCSAT- AB-xMU2 |
| ARJ11A-MASM-RT2 | ARJC07-111071A | RJMG1010211A0NR |
| RJMG1010211A0NR | RJMG1010200A0NR | ARJ11C-MASAB- BA-xMU2 |
| ARJ11B-MASAI-MU2 | ARJ11C-MBSAS-A-BA-7MU2 | ARJ11C-MASAD- AA-xMU2 |
| RJMG163117101NR | ARJ11B-MASAM-MU2 | RJMG163117101NR |
| RJMG1010211A0NR | RJMG163117101NR | ARJ11D-MASB-BA-XMU2 |
| ARJ11B-MASAJ-MU2 | ARJ11B-MASAA-MU2 | ARJ11D-MCSC-LU2 |
| ARJ11B-MASAM-MU2 | ARJ11B-MASAI-MU2 | ARJ11D-MDSD-AB-XLT2 |
| ARJ11B-MASAN-LU2 | ARJC02-111008B | ARJ11C-MBSAS-A-BA-7MU2 |
| ARJ11B-MASAJ-MU2 | ARJ11B-MASAA-MU2 | RJMG163117101NR |
| RJMG1010211A0NR | RJMG1010200A0NR | RJMG1010211A0NR |
| RJMG163117101NR | ARJP11A-MASA-BA-EMU2 | RJMG163117101NR |
| ARJ11B-MBSCB-AB-ELT2 | ARJP11A-MASA-BA-FMU2 | ARJ11D-MASG-BA-XMU2 |
| RJMG163117101NR | RJMG1010211A0NR | RJMG1010200A0NR |
| ARJ11B-MESBQ-AB-EMU2 | ARJ11C-MBSAS-A-BA-7MU2 | ARJ11B-MASAJ-MU2 |
| RJMG163117101NR | ARJP11B-MASA-BA-EMU2 | ARJ11D-MDSH-AB-XLU2 |
| ARJ11B-MBSBQ-AB-EMU2 | RJMG1010211A0NR | ARJ11B-MASAM-MU2 |
| RJMG1010200A0NR | RJMG1010200A0NR | ARJ11D-MBSJ-A-DA-HLT2 |
| RJMG163117101NR | ARJP11C-MASB-AB-A-FMU2 | RJMG1010211A0NR |
| ARJ11B-MASBR-QU2 | ARJ11B-MASAJ-MU2 | ARJ11D-MBSL-A-DA-HLU2 |

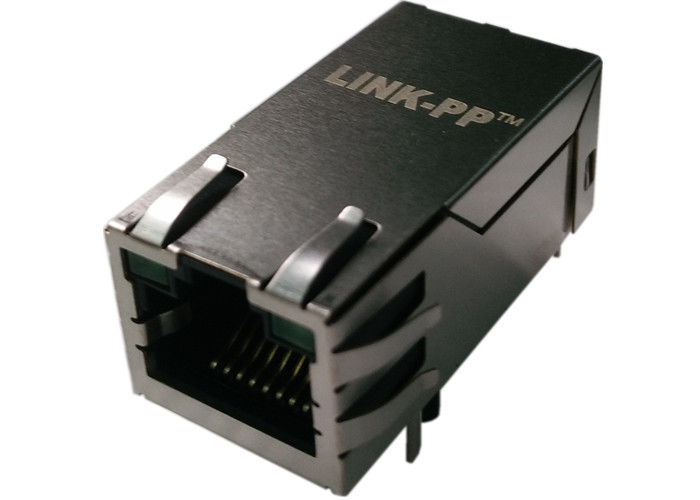

Rj45 Power Over Ethernet RJMG1010211A0NR Rj Mag 10/100 Port Tunggal Dengan Leds
Rj45 Power Over Ethernet RJMG1010211A0NR
