Rincian Produk
Tempat asal: Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: RJMG163009101NR
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.05-$1.28
Kemasan rincian: 50PCS / Baki, 1200pcs / Carton
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 4200K-PCS / Bulan
Nomor bagian: |
RJMG163009101NR |
Produksi massal: |
LPJXXNL |
Munafactuer asli: |
LINK-PP |
Ethernet: |
1000m |
Keluarga: |
konektor modular rj45 |
Mengetik: |
Magnet konektor Rj45 |
Nomor bagian: |
RJMG163009101NR |
Produksi massal: |
LPJXXNL |
Munafactuer asli: |
LINK-PP |
Ethernet: |
1000m |
Keluarga: |
konektor modular rj45 |
Mengetik: |
Magnet konektor Rj45 |

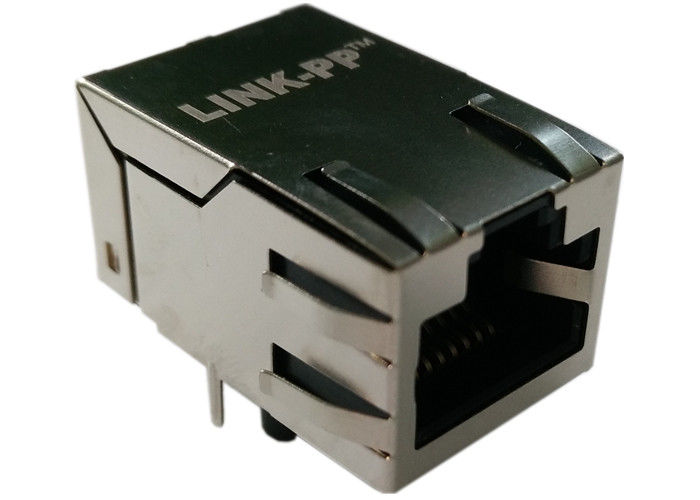

| RJMG163009101NR | Rj45 Dengan Magnetics | 10/100 / Base-T | 8 pin Konektor Rj45 |
SPESIFIKASI LISTRIK: @ 25 ℃
RJMG163009101NR Harga / PDF / Spesifikasi / Salib.
1.TR:(100KHZ,100mV);
TX = 1CT: 1CT ± 3% RX = 1CT: 1CT ± 3% P2.LX: (100KHZ, 100mV, 8mA, DC Bias)
PIN: (P1, P3), (P4, P6) = 350uH MIN
3.HIPOT:
PINS (P1, P2, P3) TO (J1, J2) = 1500V
PIN (P4, P5, P6) TO (J3, J6) = 1500V
4. KERUGIAN INSERTION:
-1.0dB MAX @ 1.0MHz KE 65MHz
5. KEMBALIKAN RUGI:
-20dB MIN @ 1MHz KE 10MHz
-16dB MIN @ 10MHz KE 30MHz
-12dB MIN @ 30MHz KE 60MHz
-10dB MIN @ 60MHz KE 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz KE 30MHz
-35dB MIN @ 30MHz KE 60MHz
-30dB MIN @ 60MHz KE 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @ 1MHz KE 50MHz
-20dB MIN @ 50MHz KE 150MHz
8. Rentang Suhu Operasi: 0 ℃ UNTUK 70 ℃ / -40 ℃ Ke 85 ℃
CATATAN:
1.Dirancang untuk mendukung aplikasi, seperti SOHO (ADSL
modem), LAN-on-Motherboard (LOM), hub dan Switch.
2.Memenuhi spesifikasi IEEE 802.3
3. Bahan Bahan:
Perumahan: Termoplastik UL94V-0
Kontak / Perisai: Paduan tembaga
Perisai plating: Nikel
Kontak plating: Emas 6 inci mikro. Di area kontak.
4.Wave suhu ujung solder: 265 ℃ Max
Suhu ujung solder ujung gelombang: 5 Detik Maks
| RJMG163008101NR RJ45 Modular Jack Rjmag 10/100, Satu Port Tidak Ada Leds | ||
|---|---|---|
| RJMG163009101NR | ARJC02-111008B | Rj45 Dengan Magnetics |
| ARJ11A-MASL-QU2 | ARJ11D-MASB-BA-FMU2 | ARJ11C-MCSAT- AB-xMU2 |
| ARJ11A-MASM-RT2 | ARJ11C-MBSAT-AB-3MU2 | ARJ11C-MASAA- BA-xLU2 |
| RJMG163008101NR | ARJ11C-MBSAT-AB-4MU2 | ARJ11C-MASAB- BA-xMU2 |
| ARJ11E-MBSB-AB-EU2 | ARJ11C-MBSAS-A-BA-7MU2 | ARJ11C-MASAD- AA-xMU2 |
| ARJ11B-MASAA-MU2 | ARJ11E-MBSA-AB-EM2 | ARJ11D-MCSA-LU2 |
| ARJ11E-MBSA-AB-EM2 | RJMG163008101NR | ARJ11D-MASB-BA-XMU2 |
| ARJ11E-MBSC-AB-EL2 | ARJ11B-MASAA-MU2 | RJMG163008101NR |
| ARJ11B-MASAM-MU2 | ARJ11E-MBSC-AB-EL2 | ARJ11D-MASB-BA-EMU2 |
| RJMG163008101NR | ARJ11C-MBSAT-AB-4MU2 | ARJ11C-MBSAS-A-BA-7MU2 |
| ARJ11D-MASB-BA-EMU2 | RJMG163008101NR | RJMG163008101NR |
| ARJ11B-MESCB-AB-ELT2 | ARJ11C-MBSAT-AB-4MU2 | ARJ11E-MBSC-AB-EL2 |
| RJMG163009101NR | ARJP11A-MASA-BA-EMU2 | RJMG163009101NR |
| ARJ11E-MBSA-AB-EM2 | ARJ11C-MBSAT-AB-3MU2 | ARJ11D-MASG-BA-XMU2 |
| ARJ11C-MBSAS-A-BA-7MU2 | ARJ11E-MBSB-AB-EU2 | ARJ11D-MASG-AA-XMU2 |
| ARJ11B-MESBQ-AB-EMU2 | ARJ11C-MBSAS-A-BA-7MU2 | ARJ11D-MASB-BA-EMU2 |
| RJMG163008101NR | RJMG163008101NR | ARJ11D-MDSH-AB-XLU2 |
| ARJ11B-MBSBQ-AB-EMU2 | ARJP11B-MBSB-AB-EMU2 | ARJ11C-MBSAT-AB-4MU2 |
| RJMG163009101NR | ARJP11C-MASA-AB-EMU2 | ARJ11D-MBSJ-A-DA-HLT2 |
| RJMG163008101NR | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| ARJ11C-MBSAT-AB-3MU2 | RJMG163009101NR | ARJ11E-MBSC-AB-EL2 |
RJMG163008101NR RJ45 Modular Jack Rjmag 10/100, Satu Port Tidak Ada Leds
RJMG163009101NR Rj45 Dengan Magnetika
