Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: Arje-0025
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.08-$1.79
Kemasan rincian: 60pcs / tray, atau Paket Reel
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 2800K-PCS/bulan
Nomor bagian: |
Arje-0025 |
Produksi massal: |
LPJKXXXXNL |
Munafactuer asli: |
LINK-PP |
Aplikasi: |
10/100/1000Base-T |
Penghentian: |
Solder |
Mengetik: |
DIP / Side Masuk |
Nomor bagian: |
Arje-0025 |
Produksi massal: |
LPJKXXXXNL |
Munafactuer asli: |
LINK-PP |
Aplikasi: |
10/100/1000Base-T |
Penghentian: |
Solder |
Mengetik: |
DIP / Side Masuk |

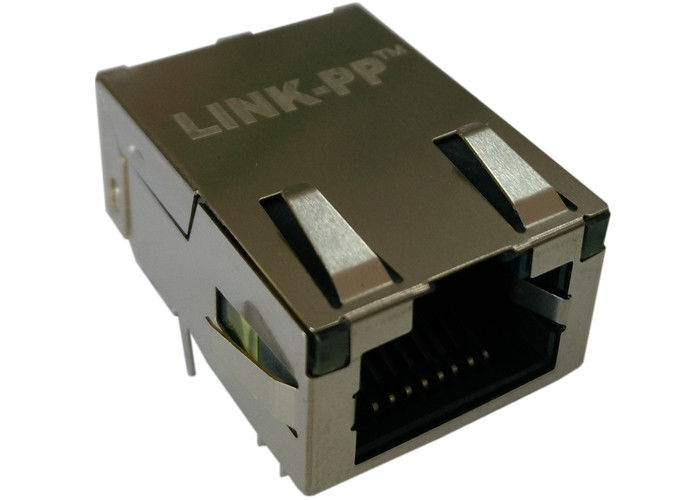

| ARJE-0025 | Ultra Low profile Rj45 Jack | Gigabit Low Profile | Konektor Rj45 profil rendah |
• Low Profile Rj45 10/100/1000 Dengan Magnetics
• Compliant dengan standar IEEE802.3
• OCR minimum 350uH dengan arus bias 8mA
• Kinerja tinggi untuk penekanan EMI maksimum
• Keandalan tinggi - 750 siklus kawin / unmating
• Dirancang untuk perangkat transceiver Gigabit Ethernet Marvell 88E1111
• Mendukung 10/100/1000 Base-Tapplications
• Menyediakan pengkondisian sinyal, penekanan EMI dan isolasi sinyal
SPESIFIKASI LISTRIK: @ 25 ℃
1.Inductance: 350uH Min
@ 100KHz, 0.1V, 8mA DC BIAS
2.Turns Ratio (± 2%):
TX = 1CT: 1 RX = 1CT: 1
Kerugian 3.Insion:
1-100MHz: -1.0dB Maks
4.Return Loss (memuat 100Ω):
1-30MHz: -18dB Min
30-60MHz: -16dB Min
60-80MHz: -12dB Min
80-100MHz: -10dB Min
5.Crosstalk:
1-100MHz: -30dB Min
6. Penolakan Mode Umum:
1-100MHz: -30dB Min
7.HI-POT: 1500Vrms Min @ 60Hz
8. Rentang Suhu Operasi: 0 ℃ UNTUK 70 ℃ / -40 ℃ Ke 85 ℃
| ARJE-0025 Low-Profile RJ45 Jack Port Tunggal Tekan Up Thru-Hole 1000 Base-T | ||
|---|---|---|
| ARJC01-111002T | ARJC02-111008B | ARJ11C-MBSAU- AB-xMU2 |
| ARJ11A-MASL-QU2 | ARJC07-111071A | ARJ11C-MCSAT- AB-xMU2 |
| ARJE-0025 | ARJC07-111071A | ARJ11C-MASAA- BA-xLU2 |
| ARJ11A-MDSN-MU2 | ARJE-0025 | ARJ11C-MASAB- BA-xMU2 |
| ARJC07-111071A | ARJC02-111008B | ARJ11C-MASAD- AA-xMU2 |
| ARJ11B-MASAA-MU2 | ARJC02-111006K | ARJC01-111002AR |
| ARJ11B-MASAI-MU2 | ARJC01-111002AR | ARJ11D-MASB-BA-XMU2 |
| ARJ11B-MASAJ-MU2 | ARJC01-111002T | ARJ11D-MCSC-LU2 |
| ARJC07-111071A | ARJC02-111006K | ARJ11D-MDSD-AB-XLT2 |
| ARJ11B-MASAN-LU2 | ARJC02-111008B | ARJ11D-MCSD-LT2 |
| ARJ11B-MASBF-LU2 | ARJC01-111002AR | ARJ11D-MDSE-AB-XMU2 |
| ARJE-0025 | ARJC01-111002L | ARJ11D-MASE-AB-XMU2 |
| ARJ11B-MASCB-LT2 | ARJP11A-MASA-BA-EMU2 | ARJ11D-MDSG-BA-XMU2 |
| ARJ11B-MBSCB-AB-ELT2 | ARJP11A-MASA-BA-FMU2 | ARJ11D-MASG-BA-XMU2 |
| ARJC01-111002AR | ARJP11A-MBSB-AB-EMU2 | ARJ11D-MASG-AA-XMU2 |
| ARJ11B-MESBQ-AB-EMU2 | ARJC02-111006E | ARJC01-111002AR |
| ARJ11B-MASBQ-MU2 | ARJP11B-MASA-BA-EMU2 | ARJ11D-MDSH-AB-XLU2 |
| ARJC07-111071A | ARJP11B-MBSB-AB-EMU2 | ARJ11D-MASH-BA-XLU2 |
| ARJ11B-MFSBQ-AA-EMU2 | ARJC07-111071A | ARJ11D-MBSJ-A-DA-HLT2 |
| ARJC01-111002T | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| ARJ11B-MASBR-QU2 | ARJC07-111071A | ARJ11D-MBSL-A-DA-HLU2 |
ARJE-0025 Low-Profile RJ45 Jack Port Tunggal Tekan Up Thru-Hole 1000 Base-T
