Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: LP5014ANL / LP5014NL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 400/2000/10K/25K
Harga: $0.06-$3.2
Kemasan rincian: T&R
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3KK/Bulan
Nomor bagian: |
LP5014ANL / LP5014NL |
Jenis Produk: |
Dual Port 1000Base-T Modul Magnetik |
Pin: |
48 |
Aplikasi: |
Port Gigabit Ethernet 2 |
Munafactuer asli: |
Link-PP |
Sampel gratis: |
Tersedia |
Nomor bagian: |
LP5014ANL / LP5014NL |
Jenis Produk: |
Dual Port 1000Base-T Modul Magnetik |
Pin: |
48 |
Aplikasi: |
Port Gigabit Ethernet 2 |
Munafactuer asli: |
Link-PP |
Sampel gratis: |
Tersedia |

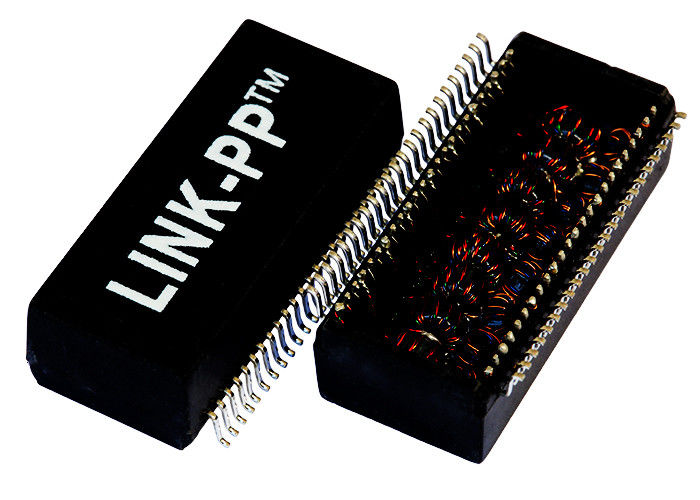

PeraturanLP5014ANL / LP5014NLadalah kinerja tinggiTransformer Gigabit Ethernetdirancang untukAplikasi 1000Base-TDengan modul magnetik dual-port yang menyediakanisolasi, integritas sinyal, dan penekanan EMIuntuk konektivitas Ethernet yang andal.
Komponen ini banyak digunakan dalamLAN-on-Motherboard (LOM), switch, hub, modem SOHO ADSL, dan kartu antarmuka jaringan.
|
PedagangPN |
Produsen PN |
Produsen | Deskripsi |
| LP5014ANL / LP5014NL | LP5014ANL / LP5014NL | LINK-PP |
Modul Magnetik 1000Base-T |
| Seri | Jenis Transformer | Aplikasi | Buka Radio |
| LAN Transformer | Isolasi dan Antarmuka Data | 1000 Base-T | 1:1 |
| Tipe pemasangan | Ukuran / Dimensi | Ketinggian - Duduk (Max) | Harga Satuan |
| Permukaan Gunung | 280,00 mm x 15,40 mm | 7 mm | Dapat dinegosiasikan |
1. Kehilangan Insertion (1 ‰ 100 MHz):-1,4 dB maksimal
2. Kembali Loss (dB min):
• 1 ̊30 MHz: -16
• 40 MHz: -14.4
• 50 MHz: -13.1
• 60~80 MHz: -12
• 100 MHz: -10
3. Crosstalk (dB min):
• 30 MHz: -43.5
• 60 MHz: -37.5
• 100 MHz: -33
4. DCMR (dB min):
• 30 MHz: -45
• 60 MHz: -40
• 100 MHz: -35
