Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: NS0013B LF
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 400/2000/10K/25K
Harga: $0.06-$3.2
Kemasan rincian: T&R
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3KK/Bulan
PN: |
NS0013B LF |
Bothhand: |
NS0013B LF |
BUATAN CHINA: |
LINK-PP LP41604ANL |
Aplikasi: |
100/1000 Base-T |
Keluarga: |
LAN Transformer Daya + |
pemasangan: |
SMT |
Archivi Disponibili: |
PDF / 3D / ISG / Stp / Langkah / Datasheet |
PN: |
NS0013B LF |
Bothhand: |
NS0013B LF |
BUATAN CHINA: |
LINK-PP LP41604ANL |
Aplikasi: |
100/1000 Base-T |
Keluarga: |
LAN Transformer Daya + |
pemasangan: |
SMT |
Archivi Disponibili: |
PDF / 3D / ISG / Stp / Langkah / Datasheet |

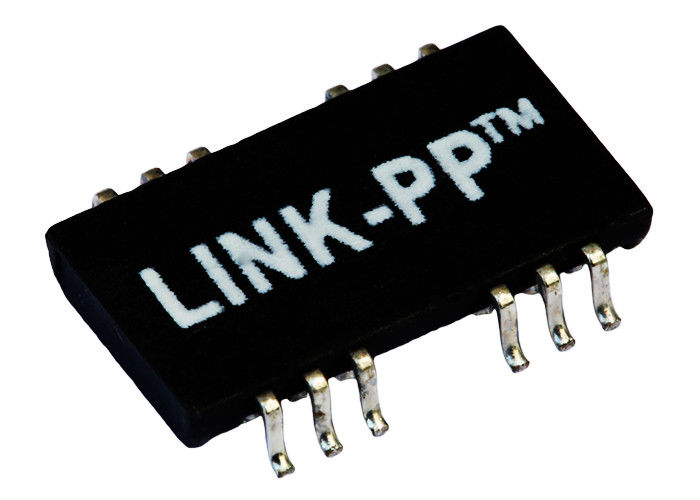

NS0013B LF = LP41604ANL | ||||||||||||||||||||||||||||||||
| Nomor Bagian Pedagang | NS0013B LF Bothhand |
| ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pabrikan | LINK-PP | |||||||||||||||||||||||||||||||
| Buatan China | LP41604ANL # LINK-PP | |||||||||||||||||||||||||||||||
| Dokumen | PDF / IGS / STEP / Cross / Harga / Kompatibel | |||||||||||||||||||||||||||||||
| Deskripsi | Gigabit Magnetics Power Over Ethernet + | |||||||||||||||||||||||||||||||
| Status Gratis Memimpin / Status RoHS | Bebas timbal / RoHS Compliant | |||||||||||||||||||||||||||||||
| Kuantitas Tersedia | 2.000 PCS / Atau 5 minggu | |||||||||||||||||||||||||||||||
LINK-PP Made In China, Daftar Produksi Massal Pabrik:
| NS0013B LF | 74990112121 | 13F-64YGD2PLNW2NL | HFJ11-1G02E-L12V3RL |
| 99751813-01 | 74990112121 | XFATM2GA-CLGY1-2MS | XFATM6CB-CLYG1-4MS |
| JX0011D21BNL | J00-0045NL | MTJ-88TX1-FSZ-PG-D1LH-M7 | MIC24013-5104T-LF3 |
| RJLD260TC1 | LP41604ANL | HFJ11-E2450E-L12RL | NS0013B LF |
| RJLD-260TC1 | J1B1211CFD | XFATM2E-Clxu1-4MS | HFJ11-1G02E-L12V3RL |
| NS0013B LF | 6605814-2 | MIC24013-5104T-LF3 | LP41604ANL |
| JXR0-0015NL | RJLBC-060TC1 | HFJ11-1G02E-L12V3RL | XFO656P-CLxu1-4MS |
| 13F-64HND2NL | HY911105AE | NS0013B LF | 24F-2011EGYD2SNWXNL |
| HFJ11-E2450E-RL | LP41604ANL | HFJ11-E2450E-L11RL | NS0013B LF |
| SJTAB-40LB02-L | RJLB-001TC1 | 13F-64GYDPNS2NL | XFAMT6SA-CLGY1-4MS |
| TG111-HPE3NZRL | NS0013B LF | HFJ11-1G02E-L12V3RL | 24G-66JGYDPLZ2NL |
| 74990112121 | 74990112121 | TG111-HPE3NZRL | HFJ11-1G02E-L12V3RL |
NS0013B LF SPESIFIKASI LISTRIK: @ 25 ℃
1.Turn Ratio (3%):
TX = 1CT: 1CT RX = 1CT: 1CT
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V
Kerugian 3.Insion:
-1.1dB MAX @ 1-100MHz
4.Return Loss:
-16dB MIN @ 1-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6. Penolakan Mode Umum:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms
8. Rentang Suhu Operasi: -40 ℃ KE + 85 ℃.
A.Dirancang untuk mendukung aplikasi, seperti SOHO (modem ADSL),
LAN-on-Motherboard (LOM), hub dan Switch.
B.Memenuhi spesifikasi IEEE 802.3.
C.Maximun reflow suhu 260 ℃, 10, 3 kali.
