Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: B59 (111) G8-28-4625-C12
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/60K
Harga: $0.11-$24
Kemasan rincian: BAKI
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 180K/Bulan
PN: |
B59 (111) G8-28-4625-C12 |
BT PN: |
B59 (111) G8-28-4625-C12 |
BUATAN CHINA: |
LINK-PP LPJG47561A55NL |
Aplikasi: |
10/100/1000 Base-TX, AutoMDIX |
Keluarga: |

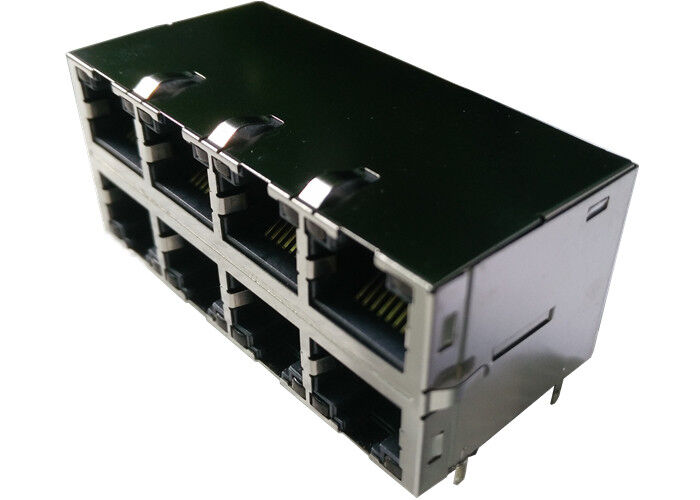

RJ45 Stack Magnetics Jack |
Orientasi: |
90 ° Angle (Kanan) |
PN: |
B59 (111) G8-28-4625-C12 |
BT PN: |
B59 (111) G8-28-4625-C12 |
BUATAN CHINA: |
LINK-PP LPJG47561A55NL |
Aplikasi: |
10/100/1000 Base-TX, AutoMDIX |
Keluarga: |
RJ45 Stack Magnetics Jack |
Orientasi: |
90 ° Angle (Kanan) |
B59 (111) G8-28-4625-C12 => LPJG47561A55NL | ||||||||||||||||||||||||||||||||
| Nomor Bagian Pedagang | B59 (111) G8-28-4625-C12 |
| ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pabrikan | BT | |||||||||||||||||||||||||||||||
| LINK-PP China Factory Cross | LPJG47561A55NL Buatan China | |||||||||||||||||||||||||||||||
| Dokumen | PDF / IGS / STEP / Cross / Harga / Kompatibel | |||||||||||||||||||||||||||||||
| Deskripsi | 10 / 100Mbps Tunggal Pelabuhan Rj45 | |||||||||||||||||||||||||||||||
| Status Gratis Memimpin / Status RoHS | Bebas timbal / RoHS Compliant | |||||||||||||||||||||||||||||||
| Kuantitas Tersedia | 2.000 PCS / Atau 4 minggu | |||||||||||||||||||||||||||||||
LINK-PP Made In China, Daftar Produksi Massal Pabrik:
| B59 (111) G8-28-4625-C12 | 74990112121 | B59 (111) G8-28-4625-C12 | HFJ11-1G02E-L12V3RL |
| 99751813-01 | 74990112121 | XFATM2GA-CLGY1-2MS | XFATM6CB-CLYG1-4MS |
| JX0011D21BNL | J00-0045NL | MTJ-88TX1-FSZ-PG-D1LH-M7 | MIC24013-5104T-LF3 |
| RJLD260TC1 | HY911105C | HFJ11-E2450E-L12RL | LPJG47561A55NL |
| RJLD-260TC1 | J1B1211CFD | XFATM2E-Clxu1-4MS | HFJ11-1G02E-L12V3RL |
| HY911105C | 6605814-2 | MIC24013-5104T-LF3 | MIC66011-5171T-LF3 |
| JXR0-0015NL | RJLBC-060TC1 | HFJ11-1G02E-L12V3RL | XFO656P-CLxu1-4MS |
| 13F-64HND2NL | HY911105AE | B59 (111) G8-28-4625-C12 | 24F-2011EGYD2SNWXNL |
| HFJ11-E2450E-RL | 2-1840450-8 | HFJ11-E2450E-L11RL | LPJG47561A55NL |
| SJTAB-40LB02-L | RJLB-001TC1 | 13F-64GYDPNS2NL | XFAMT6SA-CLGY1-4MS |
| B59 (111) G8-28-4625-C12 | J00-0045NL | HFJ11-1G02E-L12V3RL | 24G-66JGYDPLZ2NL |
| 74990112121 | 74990112121 | B59 (111) G8-28-4625-C12 | HFJ11-1G02E-L12V3RL |
B59 (111) G8-28-4625-C12 SPESIFIKASI LISTRIK: @ 25 ℃
1.Impedance: 100 ohm
2.OCL: 350uH Min
@ 100KHz, 0.1Vrms, 8mADC BIAS
3. Menghidupkan Rasio:
TX = 1∶1 RX = 1∶1
Kerugian 4.Insion:
0,5-100MHz: -1,1dB Maks
5.Return Loss (dB Min):
0,5-40MHz: -18
40,1-100MHz: - [12-20LOG (f / 50)]
6.Crosstalk (dB Min):
0,5-40MHz: -35
40,1-100MHz: - [33-20LOG (f / 50)]
7. Rasio Penolakan Mode Umum:
0,5-100MHz: -30 dB Min
8.Isolation Voltage: 1500Vrms
9. Suhu Operasi: -40 ℃ KE + 85 ℃
CATATAN:
1.Dirancang untuk mendukung aplikasi, seperti SOHO (ADSL
modem), LAN-on-Motherboard (LOM), hub dan Switch.
2.Memenuhi spesifikasi IEEE 802.3
3. Bahan Bahan:
Perumahan: Termoplastik UL94V-0
Kontak / Perisai: Paduan tembaga
Perisai plating: Nikel
Kontak plating: Emas 6 inci mikro. Di area kontak.
4.Wave suhu ujung solder: 265 ℃ Max
Suhu ujung solder ujung gelombang: 5 Detik Maks
