Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: 51F-1203GYD2NL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.09-$1.85
Kemasan rincian: 60pcs/Tray22 nampan/karton, Size37 * 30 * 30 cm, 10KGS (1320pcs)
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3000000/bulan
Nomor bagian: |
LPJD0012BENL |
menggambar ada: |
51F-1203GYD2NL |
Munafactuer asli: |
LINK-PP |
Ethernet: |
10 / 100Base-T Ethernet PHY |
Penghentian: |
Solder |
Mouting: |
180 Angle |
Nomor bagian: |
LPJD0012BENL |
menggambar ada: |
51F-1203GYD2NL |
Munafactuer asli: |
LINK-PP |
Ethernet: |
10 / 100Base-T Ethernet PHY |
Penghentian: |
Solder |
Mouting: |
180 Angle |

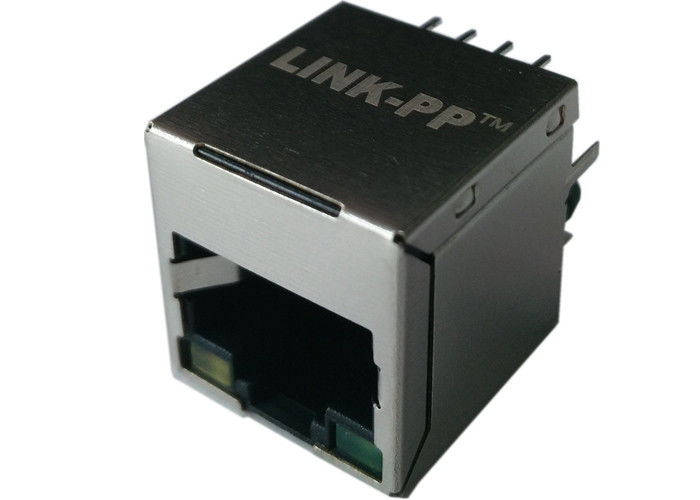

| 51F-1203GYD2NL | Vertikal Mount Rj45 LPJD0012BENL | Konektor Rj45 Masuk Atas | Rj45 vertikal |
51F-1203GYD2NL Cross / PDF / datasheet / Harga / 3D / Cross LINK-PP LPJD0012BENL
• Desain magnetik untuk mendukung setiap PHY
• Memenuhi atau melampaui standar IEEE 802.3 dan ANSI X3.263
• Termasuk 350uH menit OCL dengan bias 8mA
• Minimal isolasi 1500Vrms per persyaratan IEEE 802.3
TEST CATATAN (25 ± 5 ℃)
1.TR:(100KHz,0.1V);
TX = 1CT: 1CT ± 2% RX = 1CT: 1CT ± 2% P2.LX: (100KHz, 100mV, 8mA, DC Bias)
PIN: (R1-R3), (R4-R6) = 350uH MIN
3.Transmitter filter & Penerima filter Type:
Saldo impedansi 100 pass lulus rendah
4.HIPOT:
Input (R1-R3) UNTUK Output (C1-C2): 1500VAC 60detik
Input (R4-R6) UNTUK Output (C3-C6): 1500VAC 60detik
5. RUGI INSERTASI:
-1.0dB MAX @ 1.0MHz KE 100MHz
6. MENGEMBALIKAN RUGI:
-18dB MIN @ 1.0MHz KE 30MHz
-16dB MIN @ 30MHz KE 60MHz
-12dB MIN @ 60MHz KE 80MHz
7. TIGAS BICARA:
-30dB MIN @ 1.0MHz KE 100MHz
8.COMMON MODE REJECTION:
-30dB MIN @ 1.0MHz KE 100MHz
9. MENGOPERASIKAN SUHU: 0 ℃ ～ 70 ℃.
CATATAN:
1.Dirancang untuk mendukung aplikasi, seperti SOHO (ADSL
modem), LAN-on-Motherboard (LOM), hub dan Switch.
2.Memenuhi spesifikasi IEEE 802.3
3. Bahan Bahan:
Perumahan: Termoplastik UL94V-0
Kontak / Perisai: Paduan tembaga
Perisai plating: Nikel
Kontak plating: Emas 6 inci mikro. Di area kontak.
4.Wave suhu ujung solder: 265 ℃ Max
Suhu ujung solder ujung gelombang: 5 Detik Maks
| 51F-1203GYD2NL 180 ° Vertikal RJ45 Jack 10 / 100BT Modul Magnetik LPJD0012BENL | ||
|---|---|---|
| 51F-1203GYD2NL | ARJC02-111008B | 51F-1203GYD2NL |
| ARJ11A-MASL-QU2 | ARJC07-111071A | ARJ11C-MCSAT- AB-xMU2 |
| XMV-9813-8812-S0L1T1-B | XMV-9813-8812-S0L1T1-B | ARJ11C-MASAA- BA-xLU2 |
| ARJ11A-MDSN-MU2 | ARJC02-111006K | ARJ11C-MASAB- BA-xMU2 |
| XRJV-01V-4-D12-380 | XRJV-01V-4-D12-180 | ARJ11C-MASAD- AA-xMU2 |
| ARJ11B-MASAA-MU2 | ARJC02-111006K | 51F-1203GYD2NL |
| XRJV-01V-4-D12-180 | ARJC01-111002AR | ARJ11D-MASB-BA-XMU2 |
| ARJ11B-MASAJ-MU2 | ARJC01-111002T | ARJ11D-MCSC-LU2 |
| ARV11-3689 | 51F-1203GYD2NL | ARJ11D-MDSD-AB-XLT2 |
| ARJ11B-MASAN-LU2 | XRJV-01V-4-D12-380 | XRJV-01V-4-D12-380 |
| ARJ11B-MASBF-LU2 | XRJV-01V-4-D12-180 | ARJ11D-MDSE-AB-XMU2 |
| XRJV-01V-4-D12-380 | XMV-9813-8812-S0L1T1-B | ARJ11D-MASE-AB-XMU2 |
| ARJ11B-MASCB-LT2 | ARJP11A-MASA-BA-EMU2 | ARJ11D-MDSG-BA-XMU2 |
| ARJ11B-MBSCB-AB-ELT2 | XMV-9813-8812-S0L1T1-B | ARJ11D-MASG-BA-XMU2 |
| 51F-1203GYD2NL | ARJP11A-MBSB-AB-EMU2 | ARJ11D-MASG-AA-XMU2 |
| ARJ11B-MESBQ-AB-EMU2 | ARJC02-111006E | 51F-1203GYD2NL |
| ARJ11B-MASBQ-MU2 | ARJP11B-MASA-BA-EMU2 | ARJ11D-MDSH-AB-XLU2 |
| XRJV-01V-4-D12-180 | ARJP11B-MBSB-AB-EMU2 | ARJ11D-MASH-BA-XLU2 |
| ARJ11B-MFSBQ-AA-EMU2 | 51F-1203GYD2NL | ARJ11D-MBSJ-A-DA-HLT2 |
| XRJV-01V-4-D12-380 | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| 51F-1203GYD2NL | XRJV-01V-4-D12-380 | XRJV-01V-4-D12-180 |
51F-1203GYD2NL 180 ° Vertikal RJ45 Jack 10 / 100BT Modul Magnetik LPJD0012BENL
