Rincian Produk
Tempat asal: Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO

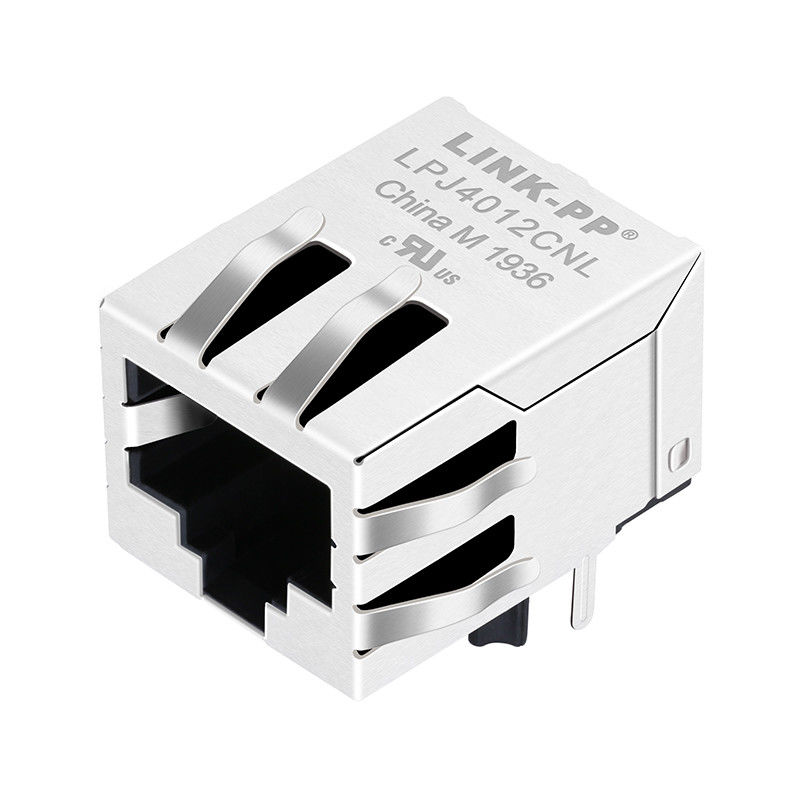

Nomor model: LPJ4012CNL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000
Harga: Supportive
Kemasan rincian: 50PCS / Baki, 1200pcs / Carton
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 4600K. PCS/bulan
Nomor Bagian: |
SI-60136-F |
Produksi massal: |
SI-60136-F |
Pabrikan Asli: |
LINK-PP |
Aplikasi: |
10/100Base-T |
Keluarga: |
Jack Dengan Magnetik |
mulut: |
DIP / Entri Teratas |
Nomor Bagian: |
SI-60136-F |
Produksi massal: |
SI-60136-F |
Pabrikan Asli: |
LINK-PP |
Aplikasi: |
10/100Base-T |
Keluarga: |
Jack Dengan Magnetik |
mulut: |
DIP / Entri Teratas |
| Belfuse SI-60136-F | Konektor Stewart | Entri Teratas Rj45 Gigabit | Entri vertikal Rj45 |
SI-60136-F Belfuse Cross / PDF / datasheet / Harga / 3D / Cross
MagJack® Integrated Magnetics Modular Jacks
Konektor Modular - Jacks Dengan Magnetics
10/100 Base-T, AutoMDIX
Melalui Lubang
90 ° Angle (Kanan)
Tidak Mengandung LED
Terlindungi, EMI Finger
SPESIFIKASI LISTRIK @ 25 ℃
1.Turn Ratio (%% P2%):
TX = 1CT: 1CT RX = 1CT: 1CT
2.Inductance OCL: 350uH MIN
@ 100KHz / 0,1 V 8mA DC Bias
Kerugian 3.Insion:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6. Penolakan Mode Umum:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot Test: 1500Vrms
8. Rentang Suhu Operasi: -40 ℃ KE + 85 ℃
| Semua harga dalam dolar AS. | ||||||||||||||||||||||||||||||||
| Nomor Bagian LINK-PP | LPJ4012CNL |
| ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kuantitas Tersedia | Stok LINK-PP: 1200 | |||||||||||||||||||||||||||||||
| Pabrikan | Konektor LINK-PP | |||||||||||||||||||||||||||||||
| Produsen Nomor Bagian | LPJ4012CNL => SI-60136-F | |||||||||||||||||||||||||||||||
| Deskripsi | CONN MAGJACK 1PORT 100 BASE-T | |||||||||||||||||||||||||||||||
| Status Gratis Memimpin / Status RoHS | Bebas timbal / RoHS Compliant | |||||||||||||||||||||||||||||||
| Moisture Sensitivity Level (MSL) | 1 (Tidak Terbatas) | |||||||||||||||||||||||||||||||
| SI-60136-F 90 ° Angle Magnetic RJ45 Bel - Modul Konektor MagJack Terintegrasi | ||
|---|---|---|
| SI-60136-F | Konektor Stewart | SI-60136-F |
| ARJ11A-MASL-QU2 | ARJC07-111071A | ARJ11C-MCSAT- AB-xMU2 |
| ARJC07-111071A | ARV11-3868I | ARJ11C-MASAA- BA-xLU2 |
| ARJ11A-MDSN-MU2 | ARJC02-111006K | ARJ11C-MASAB- BA-xMU2 |
| ARJC07-111071A | ARV11-3824I | ARJ11C-MASAD- AA-xMU2 |
| ARJ11B-MASAA-MU2 | ARJC02-111006K | ARJC01-111002AR |
| ARJ11B-MASAI-MU2 | ARJC01-111002AR | ARJ11D-MASB-BA-XMU2 |
| ARJ11B-MASAJ-MU2 | ARJC01-111002T | ARJ11D-MCSC-LU2 |
| ARV11-3689 | ARJC02-111006K | ARJ11D-MDSD-AB-XLT2 |
| ARJ11B-MASAN-LU2 | SI-60136-F | SI-60136-F |
| ARJ11B-MASBF-LU2 | ARJC01-111002AR | ARJ11D-MDSE-AB-XMU2 |
| SI-60136-F | ARV11-3689 | ARJ11D-MASE-AB-XMU2 |
| ARJ11B-MASCB-LT2 | ARJP11A-MASA-BA-EMU2 | ARJ11D-MDSG-BA-XMU2 |
| ARJ11B-MBSCB-AB-ELT2 | SI-60136-F | ARJ11D-MASG-BA-XMU2 |
| ARJC01-111002AR | ARJP11A-MBSB-AB-EMU2 | ARJ11D-MASG-AA-XMU2 |
| ARJ11B-MESBQ-AB-EMU2 | ARJC02-111006E | ARJC01-111002AR |
| ARJ11B-MASBQ-MU2 | ARJP11B-MASA-BA-EMU2 | ARJ11D-MDSH-AB-XLU2 |
| ARJC07-111071A | ARJP11B-MBSB-AB-EMU2 | ARJ11D-MASH-BA-XLU2 |
| ARJ11B-MFSBQ-AA-EMU2 | ARJC07-111071A | ARJ11D-MBSJ-A-DA-HLT2 |
| SI-60136-F | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| ARJ11B-MASBR-QU2 | ARV11-3824I | ARJ11D-MBSL-A-DA-HLU2 |
CATATAN:
1.Dirancang untuk mendukung aplikasi, seperti SOHO (modem ADSL), LAN-on-Motherboard (LOM), hub dan Switch.
2.Memenuhi spesifikasi IEEE 802.3
3. Bahan Bahan:
Perumahan: Termoplastik UL94V-0
Kontak / Perisai: Paduan tembaga
Perisai plating: Nikel
Kontak plating: Emas 6 inci mikro. Di area kontak.
4.Wave suhu ujung solder: 265 ℃ Max
Suhu ujung solder ujung gelombang: 5 Detik Maks.
