Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: ARV11-3689
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.09-$1.85
Kemasan rincian: 50 pcs dalam baki 1, 24tray di 1 karton yang 32 * 30 * 31, 9 kg (1200pcs) Setiap karton
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3000000/bulan
Spec: |
ARV11-3689 |
Item No: |
LPJD0696B9NL |
File: |
Langkah / 3D IGS PDF Datasheet |
Aplikasi: |
100 / 1000Base-T |
Penghentian: |
Solder |
Mouting: |
DIP / Masuk Top |
Cross Rf: |
LPJD0696B9NL = ARV11-3689 |
Spec: |
ARV11-3689 |
Item No: |
LPJD0696B9NL |
File: |
Langkah / 3D IGS PDF Datasheet |
Aplikasi: |
100 / 1000Base-T |
Penghentian: |
Solder |
Mouting: |
DIP / Masuk Top |
Cross Rf: |
LPJD0696B9NL = ARV11-3689 |

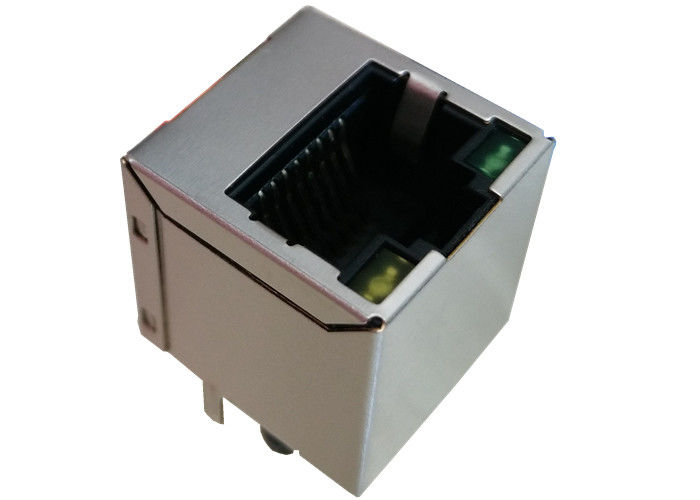

| ARV11-3689 | Vertikal Mount Rj45 Jack | Entri Teratas Rj45 Gigabit | Entri vertikal Rj45 |
ARV11-3689 ALLIED Cross / PDF / datasheet / Harga / 3D / Cross10 / 100 BaseT, LED G / Y, No EMI Fingers
1. Perisai-0.20mm KETEBALAN KUNINGAN C2680 H. PLATING NICKEL 20u "min
2. Perumahan-Standar Bahan PA66, Kaca diisi Polyester UL94V-0 Warna Standar Kuning
3. RJ Terminal- Plastik: PA66, UL94V-0, Warna Standar Kuning.
Pin: 0.35mm Ketebalan Phos-Bronze C5210 EH.
Plating: Nikel 40u "-60u" untuk semua dan Sn 100%, dan
6u ", 15u", 30u ", 50u" Gold Plating.
4. Terminal Input: PA66 Plastik, Kaca Diisi, UL94V-0, Warna Standar Kuning.
Pin: Ketebalan 0,35mm C5191-H
Plating: Nikel 40u "-60u" untuk semua dan Sn 100%.
SPESIFIKASI LISTRIK: @ 25 ℃
1.Inductance: 350uH Min
@ 100KHz, 0.1V, 8mA DC BIAS
2.Turns Ratio (± 2%):
TX = 1CT: 1 RX = 1CT: 1
Kerugian 3.Insion:
1-100MHz: -1.0dB Maks
4.Return Loss (memuat 100Ω):
1-30MHz: -18dB Min
30-60MHz: -16dB Min
60-80MHz: -12dB Min
80-100MHz: -10dB Min
5.Crosstalk:
1-100MHz: -30dB Min
6. Penolakan Mode Umum:
1-100MHz: -30dB Min
7.HI-POT: 1500Vrms Min @ 60Hz
8. Rentang Suhu Operasi: 0 ℃ UNTUK 70 ℃ / -40 ℃ Ke 85 ℃
| Gigabit Tunggal Port Vertikal Mount RJ45 ARV11-3689 ALLIED COMPONENTS Cross | ||
|---|---|---|
| ARV11-3689 | ARJC02-111008B | ARV11-3689 |
| ARJ11A-MASL-QU2 | ARJC07-111071A | ARJ11C-MCSAT- AB-xMU2 |
| ARJC07-111071A | ARV11-3868I | ARJ11C-MASAA- BA-xLU2 |
| ARJ11A-MDSN-MU2 | ARJC02-111006K | ARJ11C-MASAB- BA-xMU2 |
| ARJC07-111071A | ARV11-3689 | ARJ11C-MASAD- AA-xMU2 |
| ARJ11B-MASAA-MU2 | ARJC02-111006K | ARJC01-111002AR |
| ARJ11B-MASAI-MU2 | ARJC01-111002AR | ARJ11D-MASB-BA-XMU2 |
| ARJ11B-MASAJ-MU2 | ARJC01-111002T | ARJ11D-MCSC-LU2 |
| ARV11-3689 | ARJC02-111006K | ARJ11D-MDSD-AB-XLT2 |
| ARJ11B-MASAN-LU2 | ARV11-3832 | ARV11-3689 |
| ARJ11B-MASBF-LU2 | ARJC01-111002AR | ARJ11D-MDSE-AB-XMU2 |
| ARV11-3832 | ARV11-3689 | ARJ11D-MASE-AB-XMU2 |
| ARJ11B-MASCB-LT2 | ARJP11A-MASA-BA-EMU2 | ARJ11D-MDSG-BA-XMU2 |
| ARJ11B-MBSCB-AB-ELT2 | ARV11-3689 | ARJ11D-MASG-BA-XMU2 |
| ARJC01-111002AR | ARJP11A-MBSB-AB-EMU2 | ARJ11D-MASG-AA-XMU2 |
| ARJ11B-MESBQ-AB-EMU2 | ARJC02-111006E | ARJC01-111002AR |
| ARJ11B-MASBQ-MU2 | ARJP11B-MASA-BA-EMU2 | ARJ11D-MDSH-AB-XLU2 |
| ARJC07-111071A | ARJP11B-MBSB-AB-EMU2 | ARJ11D-MASH-BA-XLU2 |
| ARJ11B-MFSBQ-AA-EMU2 | ARJC07-111071A | ARJ11D-MBSJ-A-DA-HLT2 |
| ARV11-3689 | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| ARJ11B-MASBR-QU2 | ARV11-3832 | ARJ11D-MBSL-A-DA-HLU2 |
Gigabit Tunggal Port Vertikal Mount RJ45 ARV11-3689 ALLIED COMPONENTS Cross
