Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: RJMG163123101NR
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000
Harga: Negotiate & Target & Competitive
Kemasan rincian: 60 pcs dalam 1 tray, 22 baki dalam 1 karton, yang merupakan 37 * 30 * 30 cm, 10 KGS (1320 pcs) masin
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3000000/bulan
Nomor bagian: |
RJMG163123101NR |
Tipe Konektor: |
ethernet port rj45 |
Aplikasi: |
10/100 Base-T |
Jenis mounting: |
Melalui lubang |
Orientasi: |
90 ~ sudut (kanan) |
pemasangan: |
Thru-Hole |
Perisai: |
Terlindung, EMI jari |
Nomor bagian: |
RJMG163123101NR |
Tipe Konektor: |
ethernet port rj45 |
Aplikasi: |
10/100 Base-T |
Jenis mounting: |
Melalui lubang |
Orientasi: |
90 ~ sudut (kanan) |
pemasangan: |
Thru-Hole |
Perisai: |
Terlindung, EMI jari |

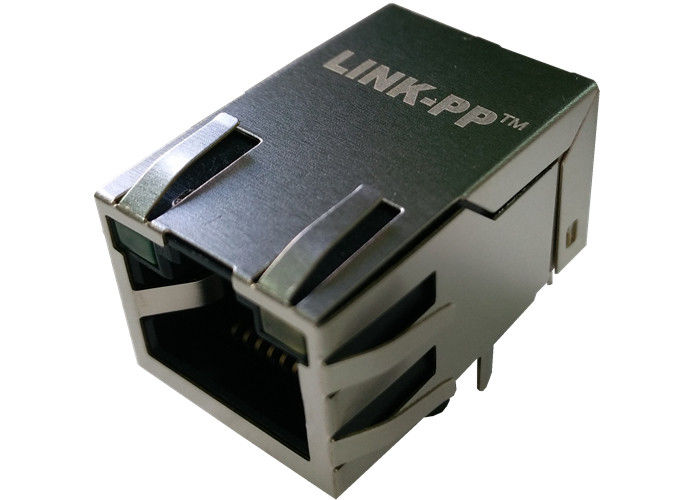

RJMG163123101NR | RJ45 Dengan Magnetika Terpadu | Rj-45 Dengan Led | Rj45 Terpadu 10/100 Lan |
RJMG163123101NR Spesifikasi / lembar data / PDF / Cross / penggantian / Harga
TEST CATATAN (25 ± 5 ℃)
1.TR:(100KHz, 100mV);
TX = 1CT∶1CT ± 3% RX = 1CT∶1CT ± 3%
P2.LX: (100KHz, 100mV, 8mA, DC Bias)
PIN: (P1, P3), (P4, P6) = 350uH MIN
3.HIPOT:
PINS (P1, P2, P3) TO (J1, J2) = 1500Vrms
PIN (P4, P5, P6) TO (J3, J6) = 1500Vrms
4. KERUGIAN INSERTION:
-1.0dB MAX @ 1.0MHz KE 65MHz
5. KEMBALIKAN RUGI:
-20dB MIN @ 1MHz KE 10MHz
-16dB MIN @ 10MHz KE 30MHz
-12dB MIN @ 30MHz KE 60MHz
-10dB MIN @ 60MHz KE 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz KE 30MHz
-35dB MIN @ 30MHz KE 60MHz
-30dB MIN @ 60MHz KE 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @ 1MHz KE 50MHz
-20dB MIN @ 50MHz KE 150MHz
8. Suhu Operasi: 0 ℃ ～ 70 ℃ / -40 ℃ ～ + 85 ℃
| RJMG163123101NR RJ45 Dengan Magnet Yang Terintegrasi Rjmag 10/100 Port Tunggal W / LED | |||
|---|---|---|---|
| PTC11XX-09D | RJMG163123101NR | PTC1111-09G | RJMG-6312-81-04 |
| PH162479G | PTC111101 | PTC111100 | RJMG-6315-71-01 |
| RJMG163123101NR | PTC111189L1G | RJMG163123101NR | RJMG63218101 |
| PTC1111-54L1VG | PTC1111-01LG | 13F-61JGYDPH2NL | RJMG-6321-81-01 |
| PTC11XX-01 | RJMG163123101NR | PTC1111-54L1VG | RJMG63445601 |
| RJMG163123101NR | PTC111145G | PTC1111-54L1VG | RJMG-7300-31-01 |
| PTC1111-51PG | PTC1111-01S | PTC111101G | RJMG73117101 |
| PTC1111-01SG | PTC1111-45L2G | RJMG63117102 | RJMG-7312-71-01 |
| RJMG221129910NR | RJMG-6300-31-01 | RJMG63118601 | RJMG73128101 |
| RJMG231022610ER | RJMG-6300-31-04 | RJMG631186A1 | RJMG73128601 |
| RJMG231022830ER | RJMG-6300-31-08 | RJMG6312-71-01 | RJMG-7326-71-01 |
| RJMG231022830ER | RJMG-6311-71-01 | RJMG231116230EL | RJMG-B312-71-01 |
| RJMG2310228A0ER | RJMG163123101NR | RJMG-6312-81-01 | RJMG163448101NR |
| RJMG1010200A0NR | RJMG16321B101NR | RJMG163123101NR | RJMG163623101NR |
| RJMG1010211A0NR | RJMG1-6321-B1-01NR | RJMG163127101NR | RJMG16412B101ER |
| RJMG12163226600R | RJMG163267101NR | RJMG163128101NR | RJMG168007101GR |
| RJMG133218101DR | RJMG163268101NR | RJMG163213101NR | RJMG168008101GR |
| RJMG163003101NR | RJMG163427101NR | RJMG163217101NR | RJMG168009101GR |
| RJMG163007101NR | RJMG163447101NR | RJMG163218101NR | RJMG168117101GR |
| RJMG163008101NR | RJMG168129101GR | RJMG168217101GR | RJMG168118101GR |
| RJMG163009101NR | RJMG163118101NR | RJMG168218101GR | RJMG168119101GR |
| RJMG163117101NR | RJMG168267101GR | RJMG168219101GR | RJMG168127101GR |
RJMG163123101NR RJ45 Dengan Magnet Yang Terintegrasi Rjmag 10/100 Port Tunggal W / LED
CATATAN:
1.Dirancang untuk mendukung aplikasi, seperti SOHO (ADSL
modem), LAN-on-Motherboard (LOM), hub dan Switch.
2.Memenuhi spesifikasi IEEE 802.3
3. Bahan Bahan:
Perumahan: PBT Termoplastik + 30% GF UL94V-0
Kontak: Phosphor Bonze C5210R-EH Tebal = 0,35mm
Pin: Brass C2680R-H Tebal = 0.35mm
Shield: SUS 201-1 / 2H Tebal = 0.2mm
Kontak plating: Emas 6 inci mikro. Di area kontak.
4.Wave suhu ujung solder: 265 ℃ Max
Suhu ujung solder ujung gelombang: 5 Detik Maks
