Rincian Produk
Tempat asal: Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: ARJ11B-MASAJ-MU2
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.05-$1.28
Kemasan rincian: 50PCS / Baki, 1200pcs / Carton
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 4200K-PCS / Bulan
Nomor bagian: |
ARJ11B-MASAJ-MU2 |
LED: |
W / Wo |
Munafactuer asli: |
LINK-PP |
Ethernet: |
Cepat 10/100 |
Keluarga: |
kemaknitan terintegrasi RJ45 |
Mengetik: |
RJ45 modular jack |
Nomor bagian: |
ARJ11B-MASAJ-MU2 |
LED: |
W / Wo |
Munafactuer asli: |
LINK-PP |
Ethernet: |
Cepat 10/100 |
Keluarga: |
kemaknitan terintegrasi RJ45 |
Mengetik: |
RJ45 modular jack |
| RJ45 Modular Jack | ARJ11B-MASAJ-MU2 | 10/100 Base-Tx | Pelabuhan Tunggal Rj45 |
SPESIFIKASI LISTRIK: @ 25 ℃
ARJ11B-MASAJ-MU2 Harga / PDF / Spesifikasi / Salib.
Menyediakan pengkondisian sinyal, penekanan EMI dan isolasi sinyal.
1.Mengubah rasio; TX = 1CT∶1CT RX = 1CT∶1CT
2.Inductance OCL: 350uH MIN
@ 100KHz 0.1V 8mA DC Bias
Kerugian 3.Insion:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz -15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz -30dB MIN @ 100MHz
6.Hipot: 1500Vrms
7. Kisaran Suhu Operasi:
0 ℃ UNTUK 70 ℃ / -40 ℃ Ke 85 ℃
• Dirancang untuk sebagian besar produsen PHY IC terkemuka seperti Broadcom, Marvell, Microsemi.
• Mendukung 10/100 Base-Tapplications
| RJ45 Modular Jack ARJ11B-MASAJ-MU2 Magnet Terpadu Rj45 Connector Cepat Lan | ||
|---|---|---|
| ARJ11B-MASAJ-MU2 | ARJC02-111008B | RJ45 Modular Jack |
| ARJ11A-MASL-QU2 | ARJ11B-MASAI-MU2 | ARJ11C-MCSAT- AB-xMU2 |
| ARJ11A-MASM-RT2 | ARJC07-111071A | ARJ11C-MASAA- BA-xLU2 |
| ARJ11A-MDSN-MU2 | ARJC02-111006K | ARJ11C-MASAB- BA-xMU2 |
| ARJ11B-MASAI-MU2 | ARJC02-111008B | ARJ11C-MASAD- AA-xMU2 |
| ARJ11B-MASAA-MU2 | ARJC02-111006K | ARJ11B-MASAI-MU2 |
| ARJ11B-MASAI-MU2 | ARJ11B-MASAI-MU2 | ARJ11D-MASB-BA-XMU2 |
| ARJ11B-MASAJ-MU2 | ARJ11B-MASAA-MU2 | ARJ11D-MCSC-LU2 |
| ARJ11B-MASAM-MU2 | ARJ11B-MASAI-MU2 | ARJ11D-MDSD-AB-XLT2 |
| ARJ11B-MASAN-LU2 | ARJC02-111008B | ARJ11B-MASAJ-MU2 |
| ARJ11B-MASAJ-MU2 | ARJ11B-MASAA-MU2 | ARJ11D-MDSE-AB-XMU2 |
| ARJ11B-MESCB-AB-ELT2 | ARJ11B-MASAJ-MU2 | ARJ11D-MASE-AB-XMU2 |
| ARJ11B-MASCB-LT2 | ARJP11A-MASA-BA-EMU2 | ARJ11B-MASAA-MU2 |
| ARJ11B-MBSCB-AB-ELT2 | ARJP11A-MASA-BA-FMU2 | ARJ11D-MASG-BA-XMU2 |
| ARJ11B-MASAA-MU2 | ARJP11A-MBSB-AB-EMU2 | ARJ11D-MASG-AA-XMU2 |
| ARJ11B-MESBQ-AB-EMU2 | ARJ11B-MASAI-MU2 | ARJ11B-MASAJ-MU2 |
| ARJ11B-MASBQ-MU2 | ARJP11B-MASA-BA-EMU2 | ARJ11D-MDSH-AB-XLU2 |
| ARJ11B-MBSBQ-AB-EMU2 | ARJP11B-MBSB-AB-EMU2 | ARJ11D-MASH-BA-XLU2 |
| ARJ11B-MFSBQ-AA-EMU2 | ARJP11C-MASA-AB-EMU2 | ARJ11D-MBSJ-A-DA-HLT2 |
| ARJ11B-MASAJ-MU2 | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| ARJ11B-MASBR-QU2 | ARJ11B-MASAJ-MU2 | ARJ11D-MBSL-A-DA-HLU2 |

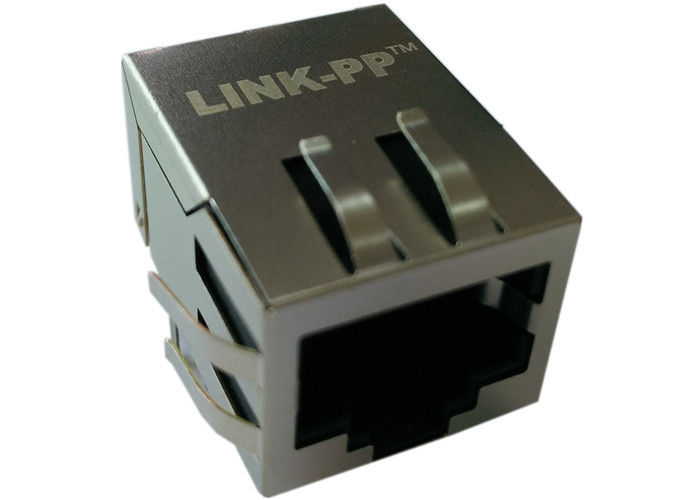

RJ45 Modular Jack ARJ11B-MASAJ-MU2 Magnet Terpadu Rj45 Connector Cepat Lan
ARJ11B-MASAJ-MU2 RJ45 Modular Jack
