Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: LP41604ANL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 400/2000/10K/25K
Harga: $0.06-$3.2
Kemasan rincian: T&R
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3KK/Bulan
Spec: |
LP41604ANL |
PN: |
LP41604ANL |
pemasangan: |
SMT / SMD |
Apllication: |
10 / 100Mbps Eth |
Sampel: |
gratis |
Proyek: |
Peralatan telekomunikasi |
Spec: |
LP41604ANL |
PN: |
LP41604ANL |
pemasangan: |
SMT / SMD |
Apllication: |
10 / 100Mbps Eth |
Sampel: |
gratis |
Proyek: |
Peralatan telekomunikasi |
Spec | Bagian No | Pabrikan | Deskripsi |

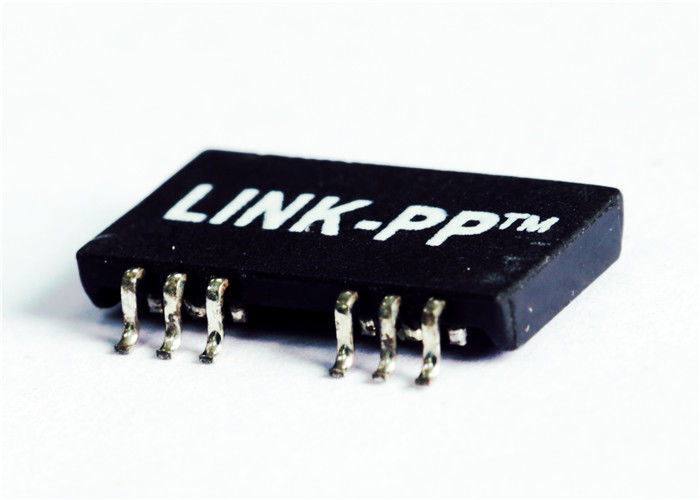

LP41604ANL | LP41604ANL | LINK-PP | Magnetic Low Profile Ethernet Transformer SMT 10 / 100Base-T Untuk PCB Lan |
Seri | Jenis Trafo | Aplikasi | Hidupkan Radio |
Transformator | Isolasi dan Antarmuka Data | 10/100 Base-T | 1: 1 |
Mounting Type | Ukuran / Dimensi | Tinggi - Duduk (Maks) | Patokan harga (USD) |
Permukaan gunung | 12.70mm L x 7.11mm | 1.98mm | Tergantung pada kuantitas |
SPESIFIKASI LISTRIK @ 25 ℃ 1.Turn Ratio (± 3%): TX = 1CT: 1CT RX = 1CT: 1CT 2.Inductance OCL: 350uH MIN @ 100KHz 0.1V Kerugian 3.Insion: -1.1dB MAX @ 1-100MHz 4.Return Loss: -16dB MIN @ 1-30MHz -12dB MIN @ 30-60MHz -10dB MIN @ 60-100MHz 5.Cross talk: -40dB MIN @ 1-30MHz -35dB MIN @ 30-60MHz -30dB MIN @ 60-100MHz 6. Penolakan Mode Umum: -30dB MIN @ 1-50MHz -20dB MIN @ 50-150MHz 7.Hipot Test: 1500Vrms 8. Rentang Suhu Operasi: -40 ℃ KE + 85 ℃. | |||
GHS16V258-AF276 | SM51108L | A-0719-2011 | TG110-S055N2RL |
H1102FNL | XF-11FB-05ANL | H1601CG | TS21CHF |
H1102NL | 000-7090-37R-LF1 | HA-003 | TS6121C |
H1102NLT | 100B-1003X | HX1188 | XFATM9B |
H1601CG | TG110-E055N5RL | HX1188FNL | XF-LCZ3A1CB |
H16127MCG | XFATM9B | HX1188NL | H1102 |
HY601680 | LP1183NL | HX1260NL | LAN1102-50 |
LFE8505 | LP1183NLE | S558-5999-U7-F | MS10232 |
MOX-LAN-SP4B-1100 | LP1193NL | LP1108NLE | TF110-S055N2 |
SL4024_APL-002A | LP1198NL | LP1148NLE | 11F (B) -11 |
TF110-S055N2 | LP1198NLE | LP1164NLE | 7090-37R-LF1 |
LP2019NL | LP1260ANLE | LP1178NL | LP1011PNL |
LP2019NLE | LP2006ANL | LP1101NL | LP1012NL |
LP2023NLE | LP2009NL | LP1102NL | LP1041PNL |
LP21640NL | LP2014NLE | LP1102NLE | LP1053NL |
LP21643NL | LP2017NL | LP2019ANLE | LP1062ANLE |
LP21646ANL | LP40453PNL | , HX1260FNL | LP1086NLE |
