Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: H1197NL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 400/2000/10K/25K
Harga: $0.06-$3.2
Kemasan rincian: T&R
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3KK/Bulan
Model: |
H1197NL |
Kategori: |
Audio & Sinyal Transformers |
Rentang frekuensi: |
1 MHz sampai 100 MHz |
Aplikasi: |
Power over Ethernet Magnetic Modules |
Gaya Pengakhiran: |
SMD / SMT |
tegangan solation:: |
1.5kV |
Archivi Disponibili: |
PDF / 3D / ISG / Stp / Langkah / Lembar Data |
Model: |
H1197NL |
Kategori: |
Audio & Sinyal Transformers |
Rentang frekuensi: |
1 MHz sampai 100 MHz |
Aplikasi: |
Power over Ethernet Magnetic Modules |
Gaya Pengakhiran: |
SMD / SMT |
tegangan solation:: |
1.5kV |
Archivi Disponibili: |
PDF / 3D / ISG / Stp / Langkah / Lembar Data |
| XFRM 1: 1 SMT | Transformer H1197NL | H1197NLDatasheet / Harga / Cross | Spesifikasi H1197NL |

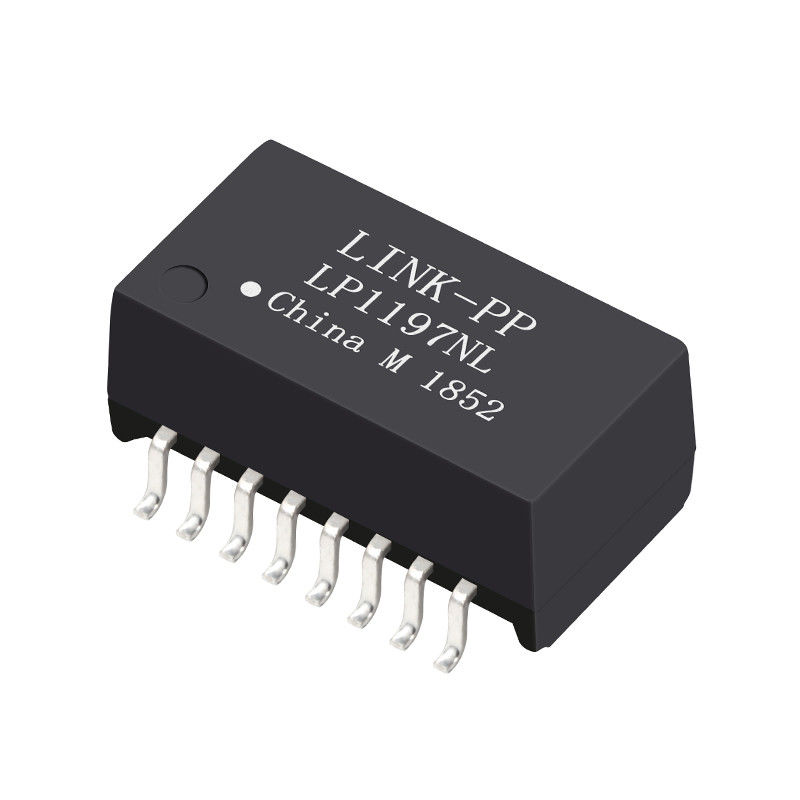

Spesifikasi Kompatibel Bagian / Silang yang Kompatibel dengan LP1197NL
Spesifikasi Listrik @ 25 ℃
1. Rugi Insersi:
1-100MHz: -1.2dB Max
2. Rugi Kembali:
1-30MHz: -16dB Min
40MHz: -14dB Min
50MHz: -13dB Min
60-80MHz: -12dB Min
3. Crosstalk:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
4. Berbeda dengan Penolakan Mode Umum:
30MHz: -43dB Min
60MHz: -37dB Min
100Mhz: -33dB Min
5. Tegangan Isolasi: 1500Vrms
6. Suhu Operasi: -40 ℃ ～ + 85 ℃.
CATATAN:
Lan Magnetics Transformer / lembaran transformator Lan
Modul Transformator Diskrit Lan / Trafo Lan kami Rj45Lan 10/100 baset
trafo ethernet / trafo Lan
Didesain untuk mendukung aplikasi, seperti SOHO (modem ADSL), LAN-on-Motherboard (LOM), hub dan Switch.
Dengan berbagai Rasio Putaran.
Peringkat solder puncak RoHS "NL" 245 ℃.
| XFRM SIN 100D 1: 1 SMT H1197NL Transformer Daya melalui Modul Magnetik Ethernet | ||||
|---|---|---|---|---|
| XF10B1Q1 | H1197NL | XFGIB1009 | XF35066B1 | XFATM8Q11A |
| XF10B1Q1A | XF20064B2 | XFGIB1009POL | XF3506SIP | XFATM8Q12 |
| XF10B1Q2 | XF20064B3 | XFGIB100B | XF3506T2 | XFATM8Q12A |
| XF10B1Q3 | XF20064B4 | XFGIB100C | XF3506T4 | XFATM8Q13 |
| XFVOIP-02 | H1197NL | XFGIB100HP | XF5100T4 | XFATM8Q13A |
| XFVOIP-03 | XF20064CS | H1197NL | XF5208Q1 | XFATM8Q14 |
| XFVOIP-03Q | XF20064CS1 | XFGIB100MA | XF5208Q2 | XFATM8Q14A |
| XFVOIP-04 | XF20064CS3 | XFGIB100MB | XF5208Q3 | XFATM8Q14D |
| XFVOIP-05 | XF20064R | XFGIB100POL | XF5208Q4 | XFATM8Q15A |
| XFVOIP-05Q | XF20065A | XFGIB1011 | XF6611TX | XFATM8Q15C |
| XFVOIP-06 | XF20065B | H1197NL | XF6611TX1 | XFATM8Q16 |
| XFVOIP-07 | XF200667B | XFGIB1012POL | XF6611TX1B | XFATM8Q1IT |
| XFVOIP-07A | XF200667D | XFGIB1013 | XF6611TX1P | XFATM8Q2 |
| XFVOIP-08 | XF200668B | XFGIC100 | XF6611TX2 | XFATM8Q22 |
| XFVOIP-09 | XF200669B | XFGIC100POL | XF6611TX2B | XFATM8Q24 |
| XFVOIP5-STACK8-4 | XF20066B | H1197NL | XF6611TX2P | XFATM8Q25 |
| XF6001 | XF2006A | XFGID100POL | XF6611TXB | XFATM8Q26 |
| XF6003 | XF6007 | XFGIF100 | XF6611TXP | XFATM8Q3 |
| XF6003A | XF6007A | XFGIH100 | XF6612TX | XF6612TX2P |
| XF6004 | XF6017 | XFGIJ100POL | XF6612TX1 | XF6612TX3B |
| XF6005 | XFEPIG-01 | XFVOIP-01 | XF6612TX1B | XF6612TX3M |
| XF6005B | XFEPIG-02 | XFEPIG-03A | XF6612TX1P | XF6612TX4 |
