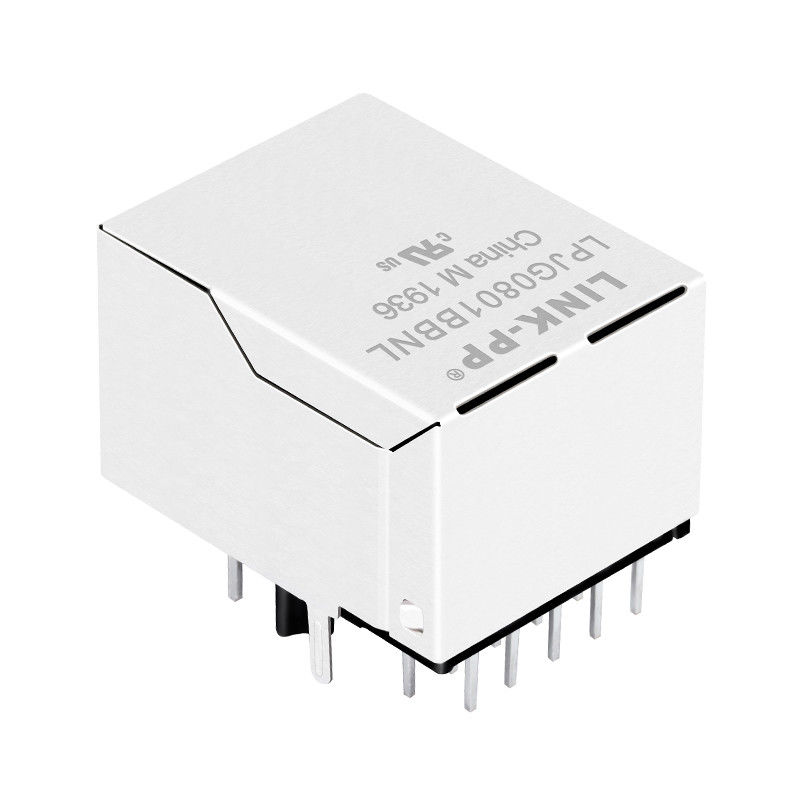

| Spesifikasi: | UE-LA1S109-43LF | P/N: | LPJG0801BBNL |
|---|---|---|---|
| PCB Mounting orientasi: | Entri sisi (sudut kanan) | Jenis Jack: | Laki-laki RJ45 |
| Kemaknitan: | 8 Cores Magnetics | Sampel: | TERSEDIA |
| Menyorot: | Satu Port RJ45,terlindung rj45 plug |
||
| SPESIFIKASI LISTRIK @ 25 ℃ |  | ||
| 1.Rasio Turn (± 2%): | |||
| TX = 1CT: 1CT RX = 1CT: 1CT | |||
| 2.Induktansi OCL: 350uH MIN | |||
| @ 100KHz / 0,1V, 8mA DC Bias | |||
| 3. Kerugian Insersi: | |||
| -1.0dB MAX @ 1.0-65MHz | |||
| 4.Rugi Pengembalian: | |||
| -20dB MIN @ 1-10MHz | |||
| -16dB MIN @ 10-30MHz | |||
| -12dB MIN @ 30-60MHz | |||
| -10dB MIN @ 60-100MHz | |||
| 5. pembicaraan lintas: | |||
| -40dB MIN @ 1-30MHz | |||
| -35dB MIN @ 30-60MHz | |||
| -30dB MIN @ 60-100MHz | |||
| 6. Mode Penolakan Umum: | |||
| -30dB MIN @ 1-50MHz | |||
| -20dB MIN @ 50-150MHz | |||
| 7.Hipot Test: 1500Vrms MIN | |||
| 8.Operating Kisaran Suhu: 0 ℃ hingga 70 ℃ | |||
