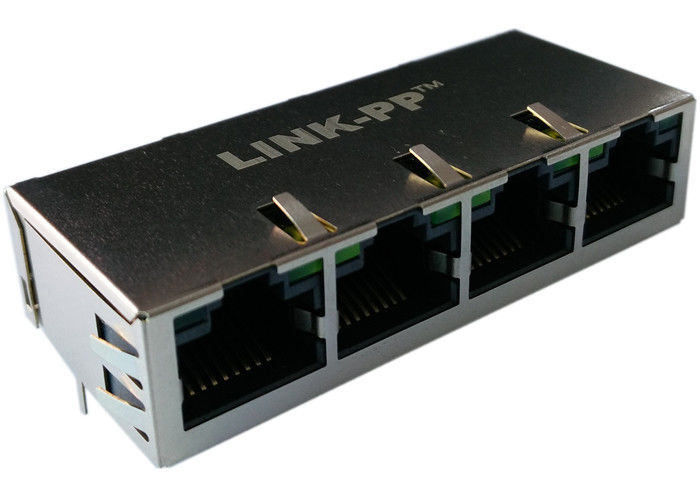

G26US-710151A Multi-port RJ45 Modular Jacks Kanan Angle 1 x 4 Port, Tab-up

Name: G26US-710151A Multi-port RJ45 Modular Jacks Kanan Angle 1 x 4 Port, Tab-up
Brand: LINK-PP
SKU: G26US-710151A
Price: 0.11 USD
Availability: InStock
Rating: 4.7 (181 reviews)

Rincian Produk

Tempat asal: Cina

Nama merek: LINK-PP

Sertifikasi: SGS, UL,CE,ISO9001:2008,Reach

Nomor model: G26US-710151A

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 50/500/1000/25K

Harga: $0.11-$12

Kemasan rincian: BAKI

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 208K/Bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                                                                                konektor port multi, modular Jack rj45


PN #:	G26US-710151A	BUATAN CHINA:	SM-LPJG48819AHNL
Antarmuka:	10/100/1000Mbps	Jenis kelamin:	Laki-laki, wadah
Aplikasi:	PDH, IP Phone, xDSL modem	Samles:	TERSEDIA

PN #:	G26US-710151A
BUATAN CHINA:	SM-LPJG48819AHNL
Antarmuka:	10/100/1000Mbps
Jenis kelamin:	Laki-laki, wadah
Aplikasi:	PDH, IP Phone, xDSL modem
Samles:	TERSEDIA

G26US-710151A Multi-port RJ45 Modular Jacks Kanan Angle 1 x 4 Port, Tab-up

G26US-710151A Multi-port RJ45 Modular Jacks Sudut Kanan 1 x 4 Port, Tab-up

G26US-710151A

1 1X1 Tab-up 10/100 / 1000M

2. Quad Port RJ45 Magjack dengan leds

3. Side Entry (Sudut Kanan)

4. PDH, IP Phone, modem xDSL
Deskripsi:

1X4 Tab-up 10/100 / 1000M RJ45 Magjack dengan leds, panjang 25.40mm, pertemuan IEEE 802.3

Spesifikasi Listrik @ 25 ℃
1.Turns Ratio: 1CT∶1CT
2.OCL: 350uH MIN
@ 100KHz, 0.1V, 8mA DC BIAS
Kerugian 3.Insion:
1 ～ 100MHz: -1.0dB MAX
100 ～ 125MHz: -1.2dB MAX
4.Return Loss (@ 100Ω ± 15Ω):
1 ～ 30MHz: -18dB MIN
30 ～ 60MHz: -16dB MIN
60 ～ 80MHz: -12dB MIN
80 ～ 100MHz: -10dB MIN
5.Crosstalk:
1 ～ 30MHz: -40dB MIN
30 ～ 60MHz: -35dB MIN
60 ～ 100MHz: -30dB MIN
6. Penolakan Mode Umum:
1 ～ 60MHz: -40dB MIN
60 ～ 100MHz: -30dB MIN
7.Hipot Test: 1500Vrms MIN
8. Suhu Operasi: 0 ℃ KE + 70 ℃.
