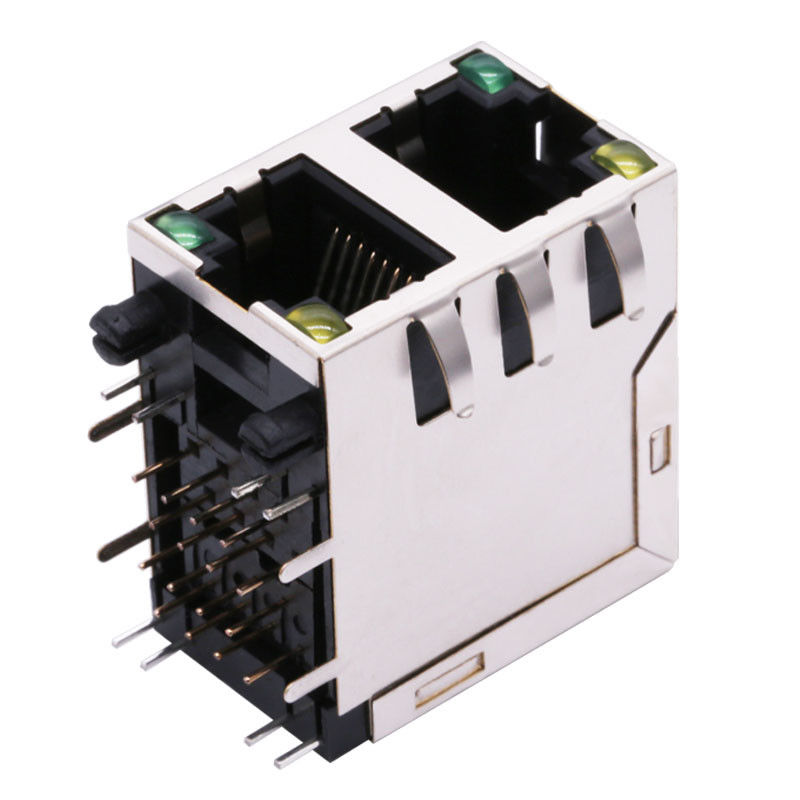

Rincian Produk
Tempat asal: Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: E5J88-L4L3F2-L
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/60K
Harga: $0.11-$24
Kemasan rincian: BAKI
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 180K/Bulan
SPEC: |
E5J88-L4L3F2-L |
Pelabuhan: |
2x1 Wanita Rj45 |
Ethernet: |
Gigabit I / O |
Keluarga: |
Jack Terpadu Magnetik |
Pemasangan: |
Entri Samping (Sudut Kanan) |
SPEC: |
E5J88-L4L3F2-L |
Pelabuhan: |
2x1 Wanita Rj45 |
Ethernet: |
Gigabit I / O |
Keluarga: |
Jack Terpadu Magnetik |
Pemasangan: |
Entri Samping (Sudut Kanan) |
| Part Status | Active | |
|---|---|---|
| Connector Type | Jack | |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | |
| Number of Ports | 2 | |
| Number of Rows | 2 | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Shielding | Shielded, EMI Finger | |
| Ratings | Cat3 | |
| Features | Board Lock | |
| LED Color | Yellow - Green | |
| Ingress Protection | - | |
| Tab Direction | Up and Down | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 6.00µin (0.152µm) | |
| Housing Material | Polyester, Glass Filled | |
| Operating Temperature | 0°C ~ 70°C |
