Low Profile Magnetic Transformers Port Ganda LP1270NL 10 / 100Base-T

Name: Low Profile Magnetic Transformers Port Ganda LP1270NL 10 / 100Base-T
Brand: LINK-PP
SKU: LP1270NL
Price: 0.06 USD
Availability: InStock
Rating: 4.7 (139 reviews)

Rincian Produk

Tempat asal: Guangdong, Cina

Nama merek: LINK-PP

Sertifikasi: UL,RoHS,Reach,ISO

Nomor model: LP1270NL

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 400/2000/10K/25K

Harga: $0.06-$3.2

Kemasan rincian: T&R

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 3KK/Bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                                                                                                                10 / 100Base-T Magnetics, Transformator Ethernet


Spesifikasi:	LP1270NL	P/N:	LP1270NL
Ethernet:	2x10 / 100Mbps	pemasangan:	SMT
Ukur:	13.08x14.99x3.68mm	Sampel:	TERSEDIA
Archivi Disponibili:	PDF / 3D / ISG / Stp / Langkah / Datasheet

Spesifikasi:	LP1270NL
P/N:	LP1270NL
Ethernet:	2x10 / 100Mbps
pemasangan:	SMT
Ukur:	13.08x14.99x3.68mm
Sampel:	TERSEDIA
Archivi Disponibili:	PDF / 3D / ISG / Stp / Langkah / Datasheet

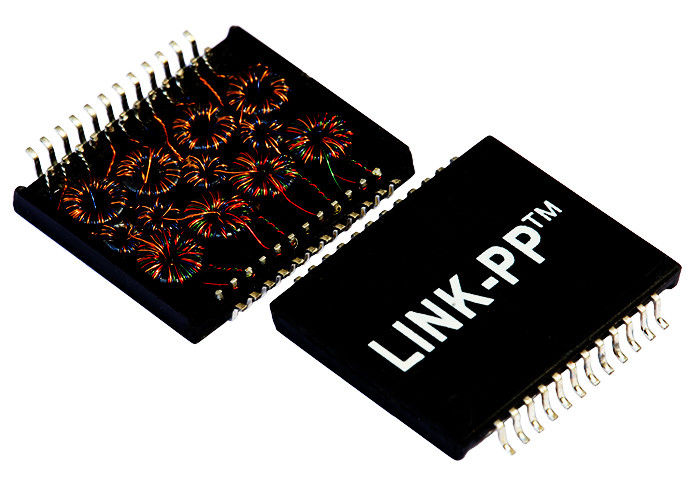

Low Profile Magnetic Transformers Port Ganda LP1270NL 10 / 100Base-T

Low Profile Magnetic Transformer Dual Port LP1270NL 10 / 100Base-T

1 Transformer Magnetic Profil Rendah
2. Tegangan Isolasi: 1500Vrms
3.Type: SMT
4. Struktur Coil: Toroidal

5. LP1270NL LINK-PP

Spesifikasi Listrik (25):

1. Ternyata Ratio50KHz, 0,5V

Sisi chip: Sisi garis = 1CT: 1CT + _2%

2. Induktansi (Ls) 100KHz, 0.1V, 12mA DC Bias:

Sisi chip: 350uH Min

3. Penipisan Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

40MHz: -14.4dB Min

50MHz: -13.1dB Min

60-80MHz: -12dB Min

100MHz: -10dB Min

5. Differential to Common Mode Rejection:

30MHz: -45dB Min

60MHz: -40dB Min

100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

60MHz: -35dB Min

100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0,5mA, 1Sec

Sisi chip ke sisi Garis

Aplikasi:

Digunakan untuk peralatan jaringan dan komunikasi seperti HUB, kartu PC, Switch,
Router, PC Mainboard, SDH, PDH, IP Phone, modem xDSL

Keunggulan kompetitif:

1100 staf,

Tes 100%

Waktu pengiriman yang fleksibel

Low Profile Magnetic Transformer Dual Port LP1270NL 10 / 100Base-T
